High-Precision Silicon Steel Sheet Slitter | CRGO Coil Slitting Machine for Transformer Cores (ZJX1250)

Product Overview

The High-Precision Silicon Steel Slitter ZJX1250 is a robust, automated solution engineered specifically for processing electrical steel (CRGO/CRNGO) coils. It accurately transforms wide silicon steel sheets into narrow strips of precise widths, required for manufacturing transformer legs, yokes, and other electrical core laminations. This advanced core slitting machine integrates cutting-edge control logic powered by a PLC system and an intuitive HMI touch screen. This allows operators to easily set slitting parameters, monitor production speeds, and ensure flawless, consistent output with minimal downtime.

Performance & Design Advantages

• Optimized for Electrical Steel: Engineered to handle the unique properties of CRGO silicon steel, minimizing material stress during processing.

• High-Precision Cutting: Achieves a superior width tolerance of ±0.10mm and extremely low burr levels (≤0.02mm), crucial for reducing transformer core loss.

• User-Friendly Automation: The advanced PLC and touch-screen interface make parameter setting, speed adjustment, and system diagnostics straightforward and efficient.

• Heavy-Duty Capacity: Robustly designed to process massive coils weighing up to 5,000 kg and with a feeding speed of up to 120 m/min.

• Comprehensive Warranty: Backed by a full one-year warranty and responsive technical support.

Technical Specifications

Complete Production Line Components

The core slitting machine ZJX1250 is a complete, integrated system designed for continuous, high-volume industrial operation:

1. Material Handling Trolley: Ensures safe loading and unloading of heavy coils.

2. Heavy-Duty Decoiler: Provides smooth, controlled uncoiling of the master roll.

3. Advanced Material Receiver & Movable Guide: Guarantees proper strip tracking before cutting.

4. High-Precision Slitting Head: Features specialized cutters for thin, hard electrical steel.

5. Synchronized Tensioner & Winder: Maintains constant tension for tight, uniform wound strips.

6. Central Control Console: Houses the PLC, HMI, and electrical control systems.

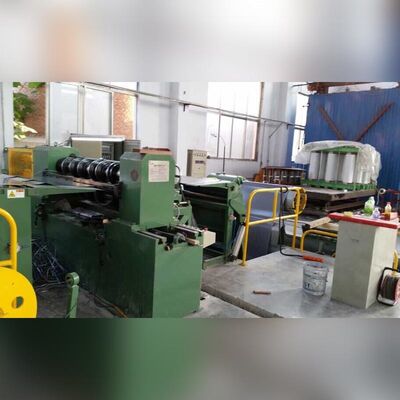

Fig 1: Core slitting machine ZJX1250's front view


Fig 2: Core slitting machine ZJX1250's winder
