JJ-BRJ600-2 Simple Customized Copper/Aluminum Foil Winding Machine

1 set
MOQ
negotiable
Price
JJ-BRJ600-2 Simple Customized Copper/Aluminum Foil Winding Machine
Features Gallery Product Description Request A Quote
Features
Specifications
Name: Transformer Foil Winding Machine
Usage: Winding Transformer Foil Coil
Cu Foil Thickness: 0.2 - 2.0mm
Al Foil Thickness: 0.3 - 3.0mm
Decoiler Number: Two Pieces
Decoiler Diameter: 480 ~ 520mm
Winding Power: 11kw
Machine Color: Optional
Basic Infomation
Place of Origin: China
Brand Name: STT/Zhutang
Certification: CE
Model Number: JJ-BRJ600-2
Payment & Shipping Terms
Packaging Details: seaworthy packing
Delivery Time: 45 days
Payment Terms: T/T
Supply Ability: 100 sets per year
Product Description
JJ-BRJ600-2 Simple Customized Copper/Aluminum Foil Winding Machine

Product Overview

The JJ-BRJ600-2 foil winding machine is a cost-effective, user-friendly foil winding machine, which is specially designed for transformer foil winding applications. Featuring a simplified and compact structural design, this kind of foil winding machine delivers stable and reliable winding performance while lowering procurement and operation costs, making it an ideal choice for different sized transformer production.

Capable of winding one or two layers of copper or aluminum foil with a maximum width of 600mm, the foil winding machine supports synchronous winding of insulating paper and foil materials to meet basic transformer insulation and winding process requirements. It is equipped with a manual mechanical rectification system to ensure precise foil alignment during operation. The foot pedal control enables convenient start/stop operation and forward/reverse rotation switching. With soft start function and smooth operation performance, the machine boasts simple operation, low failure rate and high working stability.

Main Structural Components

The whole foil winding machine adopts a modular assembly structure for easy maintenance and daily upkeep, and the core components are listed as follows:
  1. Integrated main frame (sturdy and durable, stable load-bearing)
  2. Foil decoiling units (2 sets)
  3. Precision winding unit
  4. Insulation paper decoiling units (2 sets)
  5. Pneumatic control devices
  6. Electrical control system
  7. Mechanical rectification system

Technical Parameters

The following are the standard technical specifications of the JJ-BRJ600-2 foil winding machine. All parameters can be customized and adjusted according to customers' actual production requirements.
Item
Technical Specification
Applicable Foil Material
Copper Foil, Aluminum Foil
Max. Foil Width
600mm
Aluminum Foil Thickness Range
0.3mm - 3.0mm
Copper Foil Thickness Range
0.2mm - 2.0mm
Max. Finished Coil Diameter
Ø800mm
Finished Coil Shape
Rectangle, Oval, Circle
Foil Material Outer Diameter
Ø1000mm
Foil Material Inner Diameter
Ø500mm
Foil Decoiler Quantity
2 Sets
Foil Decoiler Adjustable Diameter
Ø480mm - Ø520mm
Max. Decoiler Loading Capacity
800kg
Insulation Paper Decoiler Quantity
2 Sets (Pneumatic Expandable Type)
Insulation Paper Outer Diameter
≤Ø400mm
Insulation Paper Inner Diameter
Ø76mm
Max. Insulation Paper Width
650mm
Main Motor Power
11kW
Rotating Speed Range
0 - 26rpm
Rectification Mode
Manual Mechanical Rectification
Counting Turn Range
0 - 9999.9 Turns

Core Advantages

  • Cost-Effective & Practical: Simplified structure without redundant design, reducing equipment investment and maintenance costs, suitable for mass conventional winding production.
  • Stable & Precise Winding: Equipped with mechanical rectification system to effectively correct foil deviation, ensuring neat and uniform winding finished products.
  • Humanized Operation: Foot pedal control realizes one-key start/stop and forward/reverse switching; soft start design avoids material damage caused by sudden speed change.
  • Strong Compatibility: Adaptable to copper/aluminum foil and matching insulation paper, supporting multiple coil shapes, with customizable parameters to fit diverse production needs.

JJ-BRJ600-2 Simple Customized Copper/Aluminum Foil Winding Machine

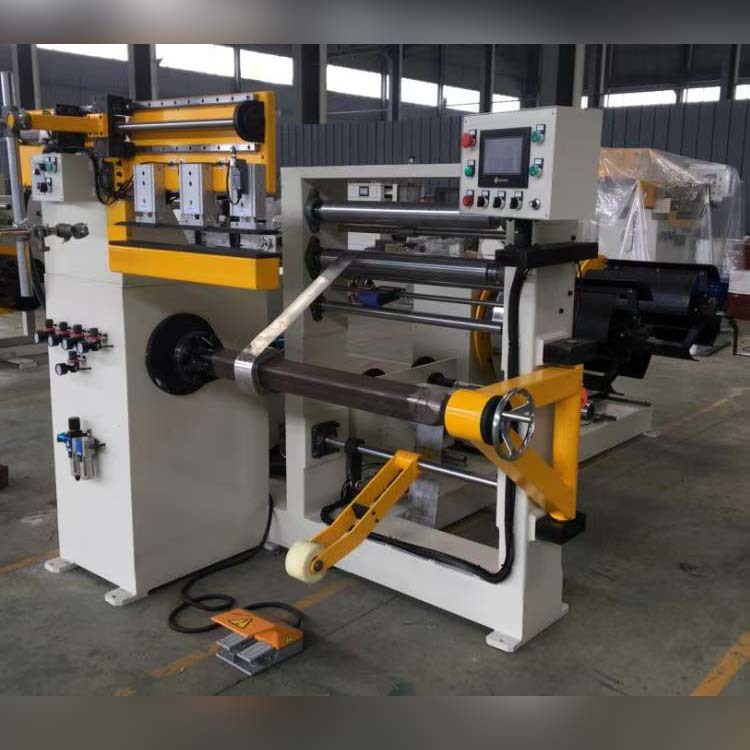

Fig 1: Transformer foil winding machine JJ-BRJ600-2's full view


JJ-BRJ600-2 Simple Customized Copper/Aluminum Foil Winding Machine

Fig 2: Transformer foil winding machine JJ-BRJ600-2's foil decoiler


JJ-BRJ600-2 Simple Customized Copper/Aluminum Foil Winding MachineJJ-BRJ600-2 Simple Customized Copper/Aluminum Foil Winding MachineJJ-BRJ600-2 Simple Customized Copper/Aluminum Foil Winding MachineJJ-BRJ600-2 Simple Customized Copper/Aluminum Foil Winding MachineJJ-BRJ600-2 Simple Customized Copper/Aluminum Foil Winding Machine
