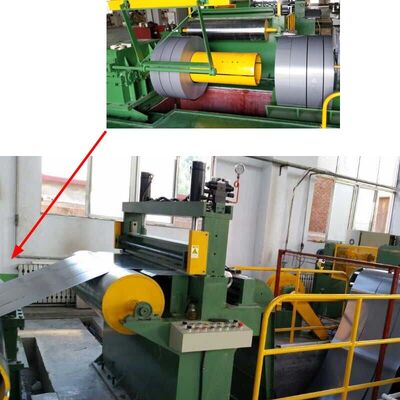

Automatic Transformer Core Silicon Steel Slitting Line Core Slitting Machine for 0.23-0.5mm Sheet Processing

ZJX1250 Automatic Silicon Steel Slitting Line | Transformer Core Electrical Steel Slitter

Product Overview

ZJX1250 industrial slitting line is a dedicated converting system built for precision processing of grain-oriented electrical steel coils. Developed for transformer core workshops, this automatic slitter divides wide master silicon steel rolls into multiple narrow strips with consistent width and clean cut edges. The finished narrow strips are commonly used for fabricating transformer core limbs, yokes and a full range of electromagnetic core assemblies. Equipped with a proven PLC control platform and responsive HMI touch panel, the slitting line streamlines the whole converting sequence. It executes automatic decoiling, precise web positioning, high-speed shear slitting and tension-controlled rewinding in one continuous cycle, reducing heavy manual intervention. Thanks to reliable running characteristics and straightforward operation logic, the unit cuts operator skill requirements and lifts overall throughput for transformer component manufacturers.

Key Advantages

• Accurate Slitting with Minimal Burrs Fitted with professional slitting knife assemblies and high-precision drive trains, the line keeps cutting burrs ≤0.02 mm and width tolerance within ±0.10 mm. It produces flat, distortion-free strip edges that satisfy strict quality standards for transformer core parts.

• High Continuous Throughput The ZJX1250 silicon steel slitter runs at a top line speed of 120 m/min for non-stop slitting. It handles high-volume coil conversion jobs efficiently, helping factories raise daily output and shorten lead times for bulk orders.

• Wide Processing Range & Great Versatility This slitting machine works with material gauges from 0.23 mm to 0.5 mm, and adjustable cutting widths spanning 40 mm up to 1200 mm. It covers most standard silicon steel sizes required by small and medium transformer production lines.

• Smart PLC + HMI Operation The integrated control architecture lets technicians input job parameters, track live machine status and tweak settings on the fly. Intelligent automation reduces human-induced mistakes and guarantees uniform quality across production batches.

• Robust Frame for Heavy Coil Loads Designed to handle coil weights up to 5000 kg and outer coil diameters as large as 1200 mm. Its reinforced heavy-duty structure suppresses vibration and web drift during long-hour non-stop industrial runs.

Technical Specifications
