Laminating And Tilting Silicon Steel Sheet Transformer Core Stacking Table 2.2kw

Laminating And Tilting Silicon Steel Sheet Transformer Core Stacking Table 2.2kw

Laminating And Tilting Silicon Steel Sheet Transformer Core Stacking Table 2.2kw
Laminating And Tilting Silicon Steel Sheet Transformer Core Stacking Table 2.2kw Laminating And Tilting Silicon Steel Sheet Transformer Core Stacking Table 2.2kw

Large Image :  Laminating And Tilting Silicon Steel Sheet Transformer Core Stacking Table 2.2kw Get Best Price

Product Details:
Place of Origin: China
Brand Name: STT
Model Number: FZT-3T
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Price: negotiable
Packaging Details: seaworthy packing
Delivery Time: 35 days
Payment Terms: T/T, L/C
Supply Ability: 100 sets per year
Detailed Product Description
Name: Transformer Core Stacking Table Usage: Stacking And Tilting Iron Core
Platform Size: 1600x1400mm Platform Height: 1000mm
Power: 2.2kw Tilting Speed: 90 Degree Per Minute
Controller: Hand Held Controller Warranty Period: 12 Months
High Light:

1000mm Transformer Core Stacking Table

,

transformer core machine 1600x1400mm

,

Transformer Core Stacking Table 1.5kw

Laminating And Tilting Silicon Steel Sheet Transformer Core Stacking Table





Description of transformer core stacking table FZT-3T

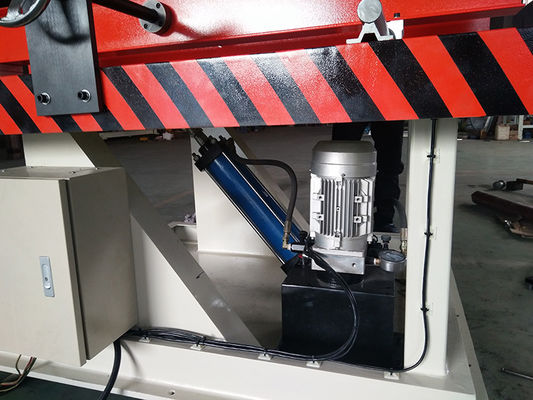

Transformer core stacking table FZT-3T is widely used to laminate silicon iron sheet to make transformer core. The transformer core stacking table can stack and tilt up the stacked core to 90°, which makes it easy to take the stacked core from the platform. With a hydraulic station providing a strong force, the transformer core stacking table can tilt the stacked core with maximum weight 3000kg. The tilting speed of the stacking table can be adjusted through a hand held controller. It is very easy to operate the stacking table.





Quick details of transformer core stacking table



  • Working platform size:1600x1400mm
  • Table height from floor:1000mm
  • Motor power: 1.5kw
  • Color: as requested



Main Parameters of transformer core stacking table



Typical standard specifications of transformer core stacking table FZT-3T are shown below, however these can be easily modified as requested.



No. Item FZT-3T
1 Working Platform Size(LxW): 1600×1400mm
2 Platform Height from Floor: 1000mm
3 Maximum Stacked Core Weight: 3000Kg
4 Maximum Stacked Core Thickness: 900mm
5 Tilting Power: Hydraulic
6 Tilting Speed: 90°/Min(Stepless speed regulating)
7 Distance Between Columns: Adjustable
8 Motor Power: 2.2KW
9 Warranty: 12 months



Laminating And Tilting Silicon Steel Sheet Transformer Core Stacking Table 2.2kw 0

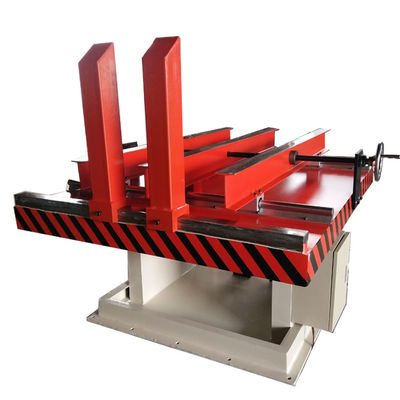

Fig 1: Transformer core stacking table FZT-3T's full view



Laminating And Tilting Silicon Steel Sheet Transformer Core Stacking Table 2.2kw 1

Fig 2: Transformer core stacking table FZT-3T's vertical view

Laminating And Tilting Silicon Steel Sheet Transformer Core Stacking Table 2.2kw 2

Laminating And Tilting Silicon Steel Sheet Transformer Core Stacking Table 2.2kw 3

Laminating And Tilting Silicon Steel Sheet Transformer Core Stacking Table 2.2kw 4

Laminating And Tilting Silicon Steel Sheet Transformer Core Stacking Table 2.2kw 5

Laminating And Tilting Silicon Steel Sheet Transformer Core Stacking Table 2.2kw 6Laminating And Tilting Silicon Steel Sheet Transformer Core Stacking Table 2.2kw 7Laminating And Tilting Silicon Steel Sheet Transformer Core Stacking Table 2.2kw 8Laminating And Tilting Silicon Steel Sheet Transformer Core Stacking Table 2.2kw 9Laminating And Tilting Silicon Steel Sheet Transformer Core Stacking Table 2.2kw 10
