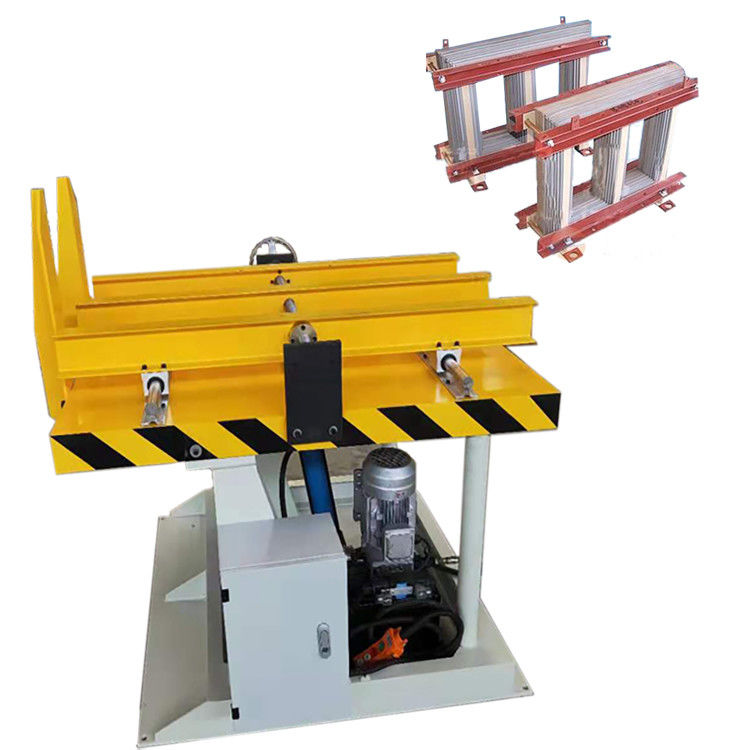

Tilting Function Transformer Automatic Core Stacking Table 1300x1000mm

Tilting Function Transformer Automatic Core Stacking Table 1300x1000mm

Tilting Function Transformer Automatic Core Stacking Table 1300x1000mm
Tilting Function Transformer Automatic Core Stacking Table 1300x1000mm

Large Image :  Tilting Function Transformer Automatic Core Stacking Table 1300x1000mm Get Best Price

Product Details:
Place of Origin: China
Brand Name: STT
Model Number: FZT-1T
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Price: negotiable
Packaging Details: seaworthy packing
Delivery Time: 35 days
Payment Terms: T/T, L/C
Supply Ability: 100 sets per year
Detailed Product Description
Name: Transformer Core Stacking Table Application: Stacking And Tilting Iron Core
Platform Size: 1300x1000mm Height: 1000mm
Power: 1.5kw Tilting Speed: 90 Degree Per Minute
Color: As Requested Warranty: 12 Months
High Light:

automatic core stacking table 1300x1000mm

,

1.5kw hydraulic tilting platform

,

automatic core stacking table 1000mm

Tilting Function Easy Operating Automatic Transformer Core Stacking Table





Description of transformer core stacking table FZT-1T



Transformer iron core stacking table FZT-1T is a professional equipment to assemble transformer iron core. The stacking table can be used to both stack different sizes of transformer iron cores and tilt the stacked iron cores up to 90°. The transformer core stacking table adopts an adjustable method to improve tilting accuracy and speed regulation accuracy. Moreover, the stacking table is with a linear guide and a hydraulic station for tilting stacked cores. The transformer core stacking table features smooth tilting and easy to operate, which assures the quality of laminating iron cores and improves the production efficiency.





Quick details of transformer core stacking table FZT-1T



  • Maximum capacity 1000kgs
  • Motor power 1.5kw
  • Hydraulic station
  • Table height 1000m
  • Machine color can be as requested
  • 12 months warranty





Main parameters of transformer core stacking table



Typical standard specifications of FZT-1T are shown below, however these can be easily modified as requested.

Stacking Platform Size: 1300×1000mm
Maximum Capacity: 1000Kg
Stacked Accuracy: 0.1 ~ 0.2mm
Table Height from Floor: 1000mm
Driven Mode: Hydraulic
Main Power: 1.5KW
Maximum Thickness of Stacked Core: 400mm
Tilting Speed: 90°/Min
Distance Between Columns: Adjustable
