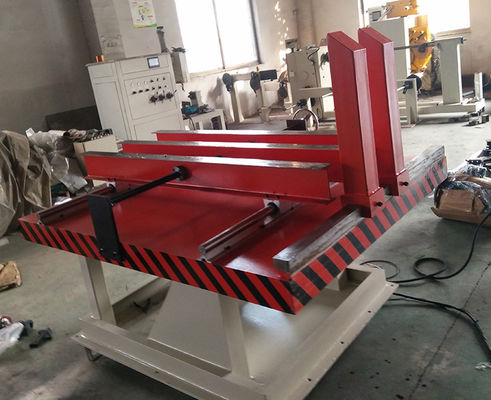

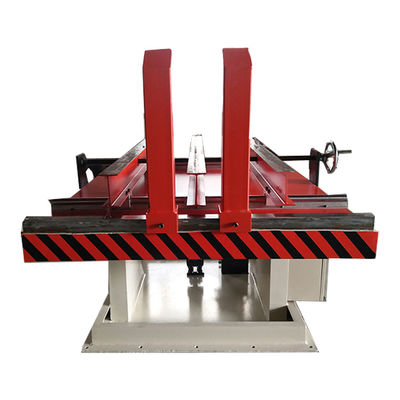

Automatic Tilting Transformer Core Stacking Table 90 Degree Assemble Platform

Automatic Tilting Transformer Core Stacking Table 90 Degree Assemble Platform

Automatic Tilting Transformer Core Stacking Table 90 Degree Assemble Platform
Automatic Tilting Transformer Core Stacking Table 90 Degree Assemble Platform Automatic Tilting Transformer Core Stacking Table 90 Degree Assemble Platform

Large Image :  Automatic Tilting Transformer Core Stacking Table 90 Degree Assemble Platform Get Best Price

Product Details:
Place of Origin: China
Brand Name: STT
Model Number: FZT-3T
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Price: negotiable
Packaging Details: seaworthy packing
Delivery Time: 35 days
Payment Terms: T/T, L/C
Supply Ability: 100 sets per year
Detailed Product Description
Table Name: Transformer Core Stacking Table Usage: Stacking And Tilting Iron Core
Platform Size: 1600x1400mm Height From Floor: 1000mm
Motor Power: 1.5kw Tilting Speed: 90 Degree Per Minute
Table Color: As Requested Warranty: 12 Months
High Light:

1000mm Transformer Core Stacking Table

,

90 Degree Assemble Platform

,

1600x1400mm Transformer Core Stacking Table

 Automatic Tilting 90 Degree Assemble Platform Transformer Core Stacking Table





Description of transformer core stacking table FZT-3T



Transformer core stacking table FZT-3T is mainly used to laminate iron sheet to make transformer core. After the iron sheet stacked, the transformer core stacking table can tilt up the stacked core to 90° for taking away the stacked iron core easily. The transformer core stacking table is provided with a hydraulic station to provide power for tilting the finished core. The tilting speed of the stacking table can be adjusted. The transformer core stacking table features running smoothly, operating easily, tilting smoothly and so on.





Quick details of transformer core stacking table



  • The table size:1600x1400mm
  • Table height:1000mm
  • Motor power: 1.5kw
  • Color: as requested





Main Parameters of transformer core stacking table



Typical standard specifications of transformer core stacking table FZT-3T are shown below, however these can be easily modified as requested.



No. Item FZT-3T
1 Table Size(LxW): 1600×1400mm
2 Table Height from Floor: 1000mm
3 Maximum Capacity: 3000Kg
4 Maximum Stacking Thickness: 900mm
5 Tilting Power: Hydraulic
6 Tilting Speed: 90°/Min(Stepless speed regulating)
7 Distance Between Columns: Adjustable
8 Motor Power: 1.5KW
9 Warranty: 12 months
