2.2kw Hydraulic Assembly Platform Assemble Armophous Alloy Transformer Core

2.2kw Hydraulic Assembly Platform Assemble Armophous Alloy Transformer Core

2.2kw Hydraulic Assembly Platform Assemble Armophous Alloy Transformer Core
2.2kw Hydraulic Assembly Platform Assemble Armophous Alloy Transformer Core
video play

Large Image :  2.2kw Hydraulic Assembly Platform Assemble Armophous Alloy Transformer Core Get Best Price

Product Details:
Place of Origin: China
Brand Name: STT
Model Number: ZPT-5T
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Price: negotiable
Packaging Details: seaworthy packing
Delivery Time: 35 days
Payment Terms: T/T, L/C
Supply Ability: 100 sets per year
Detailed Product Description
Name: Transformer Core Stacking Table Usage: Assemble Armophous Alloy Transformer Core
Tabel Height From Floor: 850mm Platform Size: 1500x2200mm
Tilting Power: Hydraulic Station Motor Power: 2.2kw
Table Weight: 1500kgs Warranty Time: 12 Months
High Light:

2.2kw Hydraulic Assembly Platform

,

1500x2200mm hydraulic tilting platform

,

1500kgs Hydraulic Assembly Platform

Hydraulic Assembly Platform Amorphous Transformer Core Stacking Table

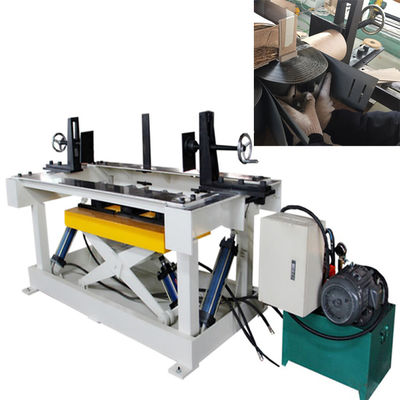

Description of transformer core stacking table ZPT-5T

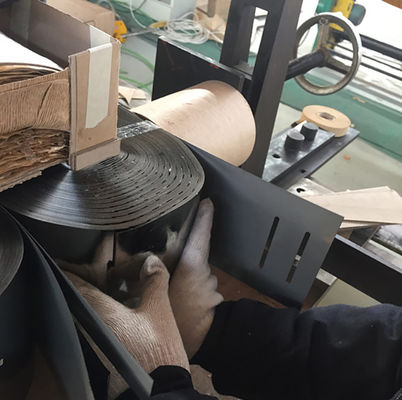

Transformer core stacking table ZPX-5T is a heavy duty equipment for assembling the amorphous transformer iron core. This kind of transformer core stacking table can be used to not only stack the iron core but also tilt the stacked core up to 90 degree. With a hand-held controller, the transformer core stacking table can tilt the stacked core easily. The table features running smoothly, being operated easily and so on.





Quick details of transformer core stacking table



  • 850mm platform height from floor
  • One piece of hydraulic station
  • Linear guide
  • 5000kgs maximum capacity
  • 2.2kw motor
  • 21MPa Hydraulic pressure



Main Parameters of transformer core stacking table



Typical standard specifications of transformer core stacking table ZPT-5T are shown below, however these can be easily modified as requested.

No. Item ZPT-5T
1 Working height 850mm
2 Applicable Core Size

L:1500-2200mm

W:360-1000mm

H:400-900

3 Platform Capacity 5000Kg
4 Lifting Platform Stroke 500mm
5 Lifting Speed 40mm/s
6 Motor Power 2.2Kw
8 Table Weight 1500Kg
8 Applicable Transformer capacity 30KVA-2000KVA
9 Rotating Angle 90°
10 Hydraulic Pressure 21MPa
