Automatic Hydraulic Transformer Core Stacking Table Tilting Platform

Automatic Hydraulic Transformer Core Stacking Table Tilting Platform

Automatic Hydraulic Transformer Core Stacking Table Tilting Platform
Automatic Hydraulic Transformer Core Stacking Table Tilting Platform Automatic Hydraulic Transformer Core Stacking Table Tilting Platform

Large Image :  Automatic Hydraulic Transformer Core Stacking Table Tilting Platform Get Best Price

Product Details:
Place of Origin: China
Brand Name: STT
Model Number: FZT-5T
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Price: negotiable
Packaging Details: seaworthy packing
Delivery Time: 35 days
Payment Terms: T/T, L/C
Supply Ability: 100 sets per year
Detailed Product Description
Platform Name: Transformer Core Stacking Table Usage: Stacking Core
Platform Size: 2000x1600mm Platform Height: 1000mm
Motor Power: 3kw Tilting Speed: 90 Degree Per Minute
Color: As Requested Warranty: 12 Months
High Light:

2000x1600mm Transformer Core Stacking Table

,

3kw Automatic Hydraulic Tilting Platform

,

1000mm Transformer Core Stacking Table

Automatic Hydraulic Transformer Core Stacking Table Tilting Platform

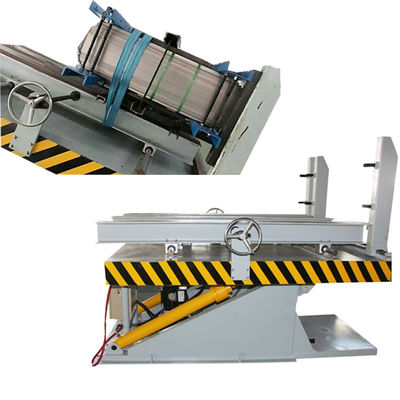

Description of transformer core stacking table FZT-5T

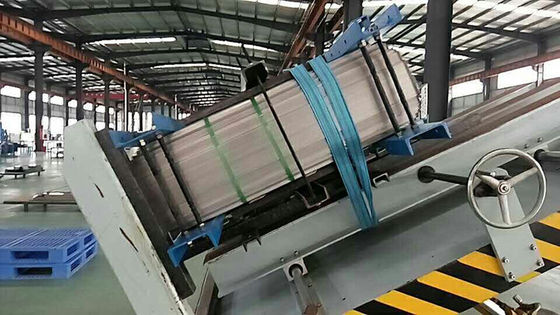

Transformer core stacking table FZT-5T is a heavy duty stacking and tilting platform for assembling transformer iron core. The transformer core stacking table can be used to stack the core with maximum weight 5000kgs. With one hydraulic station, the transformer core stacking table can tilt the stacked core up to 90 degree, which makes the stacked core be taken away easily. The stacking table features smooth running, easy operation and so on.





Quick details of transformer core stacking table



  • Platform size:2000x1600mm
  • Platform height:1000mm
  • Maximum capacity:5000kg
  • Maximum stacked core thickness: 600mm
  • Motor power: 3kw
  • Platform color: as requested



Main Parameters of transformer core stacking table



Typical standard specifications of transformer core stacking table FZT-5T are shown below, however these can be easily modified as requested.



No. Item FZT-5T
1 Platform Size(LxW): 2000×1600mm
2 Platform Height: 1000mm
3 Maximum Capacity: 5000Kg
4 Maximum Stacked Core Thickness: 900mm
5 Tilting Power: Hydraulic
6 Tilting Speed: 90°/Min
7 Distance Between Columns: Adjustable
8 Motor Power: 3KW
9 Warranty: 12 months
