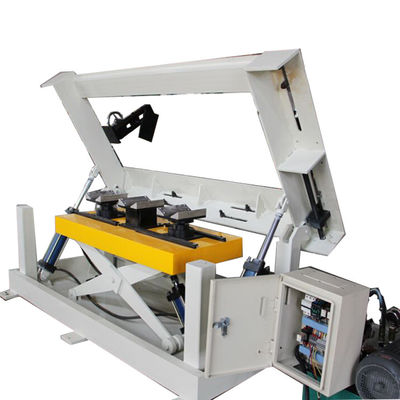

Transformer Hydraulic Titling Platform Amorphous Core Stacking Table

Transformer Hydraulic Titling Platform Amorphous Core Stacking Table

Transformer Hydraulic Titling Platform Amorphous Core Stacking Table
Transformer Hydraulic Titling Platform Amorphous Core Stacking Table
video play

Large Image :  Transformer Hydraulic Titling Platform Amorphous Core Stacking Table Get Best Price

Product Details:
Place of Origin: China
Brand Name: STT
Model Number: ZPT-3T
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Price: negotiable
Packaging Details: seaworthy packing
Delivery Time: 35 days
Payment Terms: T/T, L/C
Supply Ability: 100 sets per year
Detailed Product Description
Product Name: Transformer Core Stacking Table Function: Assemble Armophous Alloy Transformer Core
Tabel Height From Floor: 850mm Platform Size: 700x1600mm
Tilting: Hydraulic Power: 2.2kw
Table Weight: 1500kgs Warranty Time: 12 Months
High Light:

Transformer hydraulic tilting platform

,

1500kgs transformer core machine

,

STT hydraulic tilting platform

Hydraulic Driven Titling Platform Amorphous Transformer Core Stacking Table





Description of transformer core stacking table ZPT-3T



Amorphous transformer core stacking table ZPX-3T is a special equipment to assemble the amorphous alloy iron core for making transformer. The transformer core stacking table is with a function of tilting the platform, which can make the stacked core being taken away easily. The maximum weight of the stacked core can reach 3000kg. The stacking table is provided with a hydraulic station to lift and tilt. The stacking table is very easy to be operated. It is one of the features.





Quick details of transformer core stacking table



  • 850mm height platform
  • One hydraulic station
  • Linear guide
  • Maximum stacked core weight 3000kg
  • Power 2.2kw
  • Hydraulic pressure 21MPa





Main Parameters of transformer core stacking table



Typical standard specifications of transformer core stacking table ZPT-3T are shown below, however these can be easily modified as requested.

No. Item ZPT-3T
1 Platform height from floor 850mm
2 Stacked Core Size

L:700-1600mm

W:360-700mm

H:400-900

3 Maximum Stacked Core Weight 3000Kg
4 Platform Stroke 300mm
5 Lifting Speed 40mm/s
6 Motor Power 2.2Kw
8 Table Weight 1500Kg
8 Applicable Transformer 30KVA-2000KVA
9 Rotating Angle 90°
10 Hydraulic Working Pressure 21MPa
