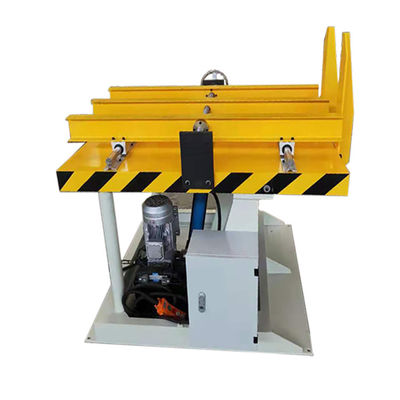

Hand Held Controller Tilting Platform Transformer Iron Core Stacking Table 1.5kw

Hand Held Controller Tilting Platform Transformer Iron Core Stacking Table 1.5kw

Hand Held Controller Tilting Platform Transformer Iron Core Stacking Table 1.5kw
Hand Held Controller Tilting Platform Transformer Iron Core Stacking Table 1.5kw

Large Image :  Hand Held Controller Tilting Platform Transformer Iron Core Stacking Table 1.5kw Get Best Price

Product Details:
Place of Origin: China
Brand Name: STT
Model Number: FZT-1T
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Price: negotiable
Packaging Details: seaworthy packing
Delivery Time: 35 days
Payment Terms: T/T, L/C
Supply Ability: 100 sets per year
Detailed Product Description
Table Name: Transformer Core Stacking Table Function: Stacking And Tilting Iron Core
Platform Size: 1300x1000mm Platform Height: 1000mm
Motor Power: 1.5kw Tilting Speed: 90 Degree Per Minute
Color: As Requested Warranty: 12 Months
High Light:

Iron Core Stacking Table 1300x1000mm

,

Hand Held Controller Tilting Platform

,

Iron Core Stacking Table 1.5kw

Hand Held Controller Tilting Platform Transformer Core Stacking Table





Description of transformer core stacking table FZT-1T



Transformer iron core stacking table FZT-1T is a special equipment, which can be used to assemble transformer iron cores and other similar products. The stacking table is with functions of both stacking different sizes of transformer iron cores and tilting the stacked iron cores, which makes it easy to take away the stacked core from the table. The transformer core stacking table is provided with a hydraulic station which provides force for tilting the platform.





Quick details of transformer core stacking table FZT-1T



  • Maximum stacked core weight 1000kgs
  • Motor power 1.5kw
  • One hydraulic station
  • Platform height 1000m
  • Machine color can be as requested
  • 12 months warranty





Main parameters of transformer core stacking table



Typical standard specifications of FZT-1T are shown below, however these can be easily modified as requested.

Platform Size: 1300×1000mm
Maximum Stacked Core Weight: 1000Kg
Stacked Accuracy: 0.1 ~ 0.2mm
Platform Height from Floor: 1000mm
Driving Mode: Hydraulic
Main Power: 1.5KW
Maximum Stacked Core Thickness: 400mm
Tilting Speed: 90°/Min
Distance Between Columns: Adjustable
