400mm Width Silicon Steel Cutting Machine Automatic

400mm Width Silicon Steel Cutting Machine Automatic

400mm Width Silicon Steel Cutting Machine Automatic
400mm Width Silicon Steel Cutting Machine Automatic

Large Image :  400mm Width Silicon Steel Cutting Machine Automatic Get Best Price

Product Details:
Place of Origin: China
Brand Name: STT
Model Number: UCM400
Payment & Shipping Terms:
Minimum Order Quantity: 1
Price: negotiable
Packaging Details: seaworthy packing
Delivery Time: 45 days
Payment Terms: T/T, L/C
Supply Ability: 100 sets per year
Detailed Product Description
Machine Name: Unicore Cutting Machine Decoiler: Single Head
Color: Green Warranty: 12 Months
Air Pressure: 1 Mpa Bending Angle: 45°
Decoiler Capacity: 1000kg Decoiler Expanding: Φ450mm ~ Φ510mm
High Light:

400mm Width Silicon Steel Cutting Machine

,

Silicon Steel Cutting Machine Automatic

,

Silicon Steel Unicore Cutting Machine

400mm Width Silicon Steel Cutting Machine Automatic Unicore Cortadora de un solo ángulo





Introduction of silicon steel cutting machine UCM400



Automatic silicon steel cutting machine, also called unicore cutting machine, UCM400 is mainly used to cut silicon steel to make rectangle open core for transformer. The silicon cutting machine is a speicail equipment for cutting silicon steel to make transformer core. The silicon steel cutting machine not only can cut one strip with maximum width 400mm, but also can cut two strips with maximum width 190mm at once. The cut core can be used in oil transformers,dry transformers and traction transformers with high voltage from 10KV to 35KV and the capacity from 30KVA to 3150KVA. The supply coil decoiler adopts hydraulic expanding, which guarantees to put and fix the silicon steel roll easily. The blades adopted in the cutting machine are made of cemented carbide. With a touch screen, the cutting machine can be easily operated.





Main parts of silicon steel cutting machine UCM400



1. Main machine

2. Single head supply coil dereeler

3. Floor support plate

4. One set of cutter





Main parameters of silicon steel cutting machine UCM400



Typical standard specifications of silicon steel cutting machine UCM400 are shown below, however the machine can also be manufactured as requested.



Single silicon steel sheet width (maximum) 400mm
Two silicon steel sheet width (maximum) 190mm
Cutting speed can be adjustable
Bending angle  45°
Supply coil decoiler Hydraulic expanding
Supply coil decoiler expanding range Φ450mm ~ Φ510mm
Supply coil decoiler capacity 1000kg
Silicon steel roll inner diameter Φ500mm
Silicon steel roll outer diameter Φ1000mm maximum
Power Supply 380V 50Hz
Power 6kw
Machine dimension(LxWxH): 7000×1800×1500mm



400mm Width Silicon Steel Cutting Machine Automatic 0

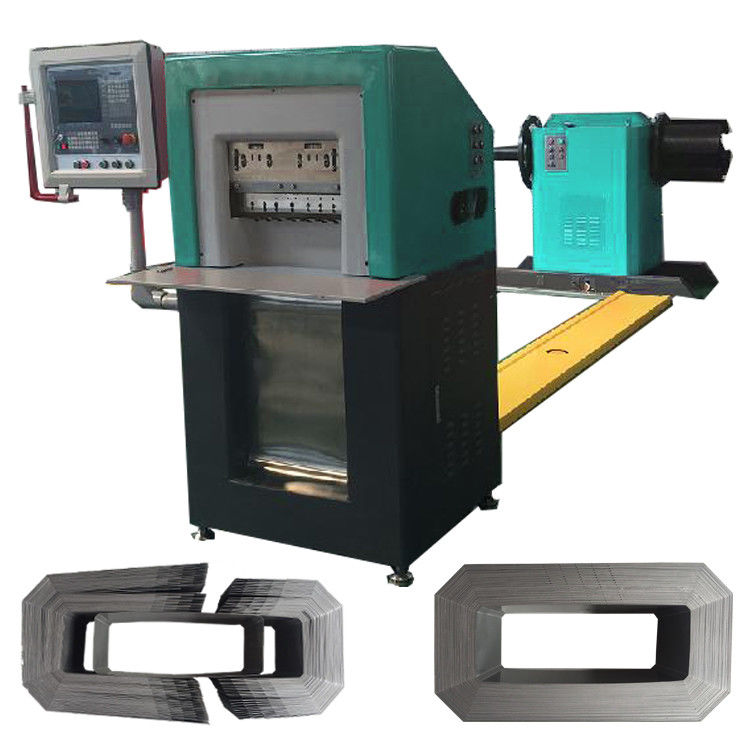

Fig 1: Unicore cutting machine UCM400's full view



400mm Width Silicon Steel Cutting Machine Automatic 1

Fig 2: Cut cores



400mm Width Silicon Steel Cutting Machine Automatic 2

400mm Width Silicon Steel Cutting Machine Automatic 3400mm Width Silicon Steel Cutting Machine Automatic 4

400mm Width Silicon Steel Cutting Machine Automatic 5400mm Width Silicon Steel Cutting Machine Automatic 6
