Unicore C Shaped Transformer Core Machine For Silicon Steel Cutting

Unicore C Shaped Transformer Core Machine For Silicon Steel Cutting

Unicore C Shaped Transformer Core Machine For Silicon Steel Cutting
Unicore C Shaped Transformer Core Machine For Silicon Steel Cutting

Large Image :  Unicore C Shaped Transformer Core Machine For Silicon Steel Cutting Get Best Price

Product Details:
Place of Origin: China
Brand Name: STT
Certification: CE
Model Number: UCM400
Payment & Shipping Terms:
Minimum Order Quantity: 1
Price: negotiable
Packaging Details: seaworthy packing
Delivery Time: 45 days
Payment Terms: T/T, L/C
Supply Ability: 100 sets per year
Detailed Product Description
Product Name: Unicore Cutting Machine Decoiler: Single Head
Color: Customized Warranty: 12 Months
Air Pressure: 1 Mpa Bending Angle: 45°
Decoiler Capacity: 1000kg Decoiler Expanding: Φ450mm ~ Φ510mm
High Light:

C Shaped Transformer Core Machine

,

Silicon Steel Transformer Core Machine

,

C Shape Silicon Steel Cutting Machine

Unicore C Shaped Transformer Core Making Machine Silicon Steel Cutting Machine





Description of silicon steel cutting machine UCM400



The silicon steel cutting machine UCM400, also called unicore cutting machine, i.e. Cortadora de un solo ángulo, is a special equipment for cutting transformer C shaped core. This kind of core can be used in oil type transformer, dry type transformer, and traction transformer, etc. The unicore cutting machine has the function of speed regulation and the speed can be adjusted. The unicore cutting machine is provided with perfect software, servo drive control of the cutter and fold mechanisms.





Quick details of silicon steel cutting machine UCM400

  • Suitable for making oil, dry, traction transformer
  • Two heads decoiler
  • Single set silicon steel sheet width ≤400mm
  • Double sets sillicon steel sheet with ≤190mm
  • Air pressure 1 Mpa
  • One year warranty



Main components of silicon steel cutting machine UCM400

  • Cylinder
  • Bearings
  • Linear guide,
  • Linear bearing etc.
  • Decoiler
  • Touch screen



Main parameters of silicon steel cutting machine UCM400



Typical standard specifications of UCM400 are shown below, however, the silicon steel cutting machine can also be manufactured as requested.

1 Applicable Transformer High Voltage: HV: 10~35kV
2 Applicable Transformer Capacity: 30KVA~3150KVA
3 Single Set Silicon Steel Sheet Width: ≤400mm
4 Double Sets Silicon Steel Sheet Width: ≤190mm
5 Air Pressure: 1Mp
6 Bending Angle: 45°



Unicore C Shaped Transformer Core Machine For Silicon Steel Cutting 0

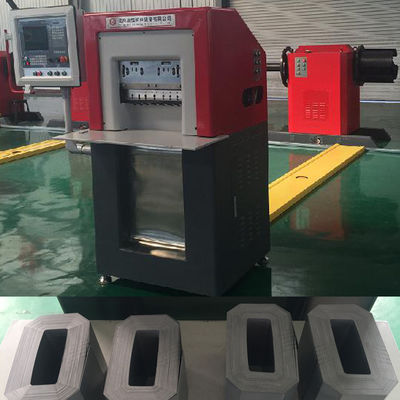

Fig 1: Silicon steel cutting machine UCM400's full view



Unicore C Shaped Transformer Core Machine For Silicon Steel Cutting 1

Fig 2: Silicon steel cutting machine UCM400's cut product



Unicore C Shaped Transformer Core Machine For Silicon Steel Cutting 2Unicore C Shaped Transformer Core Machine For Silicon Steel Cutting 3

Unicore C Shaped Transformer Core Machine For Silicon Steel Cutting 4Unicore C Shaped Transformer Core Machine For Silicon Steel Cutting 5Unicore C Shaped Transformer Core Machine For Silicon Steel Cutting 6Unicore C Shaped Transformer Core Machine For Silicon Steel Cutting 7Unicore C Shaped Transformer Core Machine For Silicon Steel Cutting 8
