Automatic Core Slitting Machine CRGO Silicon Steel Sheet Making Strip Coil

Automatic Core Slitting Machine CRGO Silicon Steel Sheet Making Strip Coil

Automatic Core Slitting Machine CRGO Silicon Steel Sheet Making Strip Coil
Automatic Core Slitting Machine CRGO Silicon Steel Sheet Making Strip Coil

Large Image :  Automatic Core Slitting Machine CRGO Silicon Steel Sheet Making Strip Coil Get Best Price

Product Details:
Place of Origin: China
Brand Name: STT
Certification: CE
Model Number: ZJX1250
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Price: negotiable
Packaging Details: seaworthy packing
Delivery Time: 90 days
Payment Terms: T/T, L/C
Supply Ability: 100 sets per year
Detailed Product Description
Name: Steel Sheet Slitting Machine Usage: Slit Silicon Steel Sheet
Strip Roll OD: 1200mm, Maximum Strip Roll ID: 500mm
Sheet Thickness: 0.15 ~ 0.6mm Sheet Width: 500 ~ 1250mm
Color: As Requested Warranty Period: 12 Months
High Light:

Automatic Core Slitting Machine

,

Silicon Steel Sheet Core Slitting Machine

,

CRGO Core Slitting Machine

Automatic Core Slitting Machine CRGO Silicon Steel Sheet Slitter Making Strip Coil





Description of core slitting machine ZJX1250



Automatic core slitting machine ZJX1250 is a professional equipment to slit silicon steel sheet to make different width of strip coil. The slitting speed of the core slitting machine can be adjusted. The core slitting machine is provided with 6 sets of cutters, which can cut five strips at one time. The core slitting machine features easy operation and precise cutting.





Quick details of core slitting machine ZJX1250

  • Decoiler expanding range Ø470 ~ 520mm
  • Sheet width 500 ~ 1250 mm
  • Sheet thickness 0.15 ~ 0.6mm
  • 6 sets of cutters
  • Feeding speed 120m/min
  • Power 46kw
  • One year warranty



Main components of core slitting machine ZJX1250



1. Trolley for loading and unloading material

2. Decoiler

3. Material receiver

4. Movable guide device

5. Slitting device

6. Tensioner

7. Winder

8. Hydraulic station and pneumatic system

9. Electrical control cabinet and console



Main parameters of core slitting machine ZJX1250



Typical standard specifications of core slitting machine ZJX1250 are shown below, however, the core slitting machine can also be manufactured as requested.

Decoiler expanding range: Ø470 ~ 520mm
Coil ID: Ø495 ~ 510mm
Maximum coil OD: Ø1200mm
Maximum coil weight: 5000kg
Cutting width: 500 - 1250 mm
Cutting thickness: 0.15 - 0.6 mm
Cutting width tolerance: ±0.10mm
Cutter: 6 sets
Feeding speed: 120 m/min
Cutting burring: ≤0.02 mm
Power: 46 kw



Automatic Core Slitting Machine CRGO Silicon Steel Sheet Making Strip Coil 0

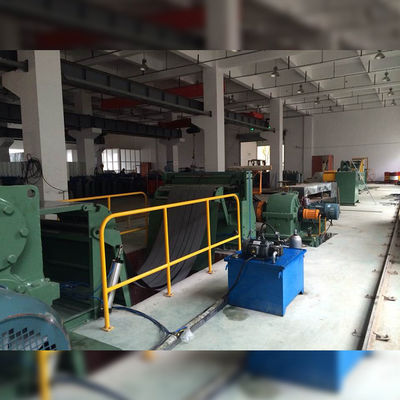

Fig 1: Core slitting machine ZJX1250's front view



Automatic Core Slitting Machine CRGO Silicon Steel Sheet Making Strip Coil 1

Fig 2: Core slitting machine ZJX1250's winder



Automatic Core Slitting Machine CRGO Silicon Steel Sheet Making Strip Coil 2Automatic Core Slitting Machine CRGO Silicon Steel Sheet Making Strip Coil 3

Automatic Core Slitting Machine CRGO Silicon Steel Sheet Making Strip Coil 4

Automatic Core Slitting Machine CRGO Silicon Steel Sheet Making Strip Coil 5Automatic Core Slitting Machine CRGO Silicon Steel Sheet Making Strip Coil 6Automatic Core Slitting Machine CRGO Silicon Steel Sheet Making Strip Coil 7Automatic Core Slitting Machine CRGO Silicon Steel Sheet Making Strip Coil 8
