Making Transformer Core Stacking Table Laminating Sheet With Tilting Function

Making Transformer Core Stacking Table Laminating Sheet With Tilting Function

Making Transformer Core Stacking Table Laminating Sheet With Tilting Function
Making Transformer Core Stacking Table Laminating Sheet With Tilting Function

Large Image :  Making Transformer Core Stacking Table Laminating Sheet With Tilting Function Get Best Price

Product Details:
Place of Origin: China
Brand Name: STT
Certification: CE
Model Number: FZT-1T
Payment & Shipping Terms:
Minimum Order Quantity: 1
Price: negotiable
Packaging Details: seaworthy packing
Delivery Time: 30 days
Payment Terms: T/T, L/C
Supply Ability: 100 sets per year
Detailed Product Description
Name: Transformer Iron Core Assembly Table Table Height: 1000mm
Motor Power: 1.5kw Stacking Height: 400mm
Color: Customized Warranty: 12 Months
Maximum Loading: 1000kg Tilting: Hydraulic Station
High Light:

Making Transformer Core Stacking Table

,

Laminating Sheet Transformer Core Stacking Table

,

Tilting Transformer Table

Making Transformer Core Stacking Table Laminating Sheet With Tilting Function





Quick details of transformer core stacking table FZT-1T

  • Maximum capacity 1000kgs
  • Main power 1.5kw
  • Hydraulic
  • Table height 1000m
  • One year warranty



Description of transformer core stacking table FZT-1T



Transformer core stacking table FZT-1T is a special equipment to making transformer core. The transformer core stacking table can be used to stack different sizes of transformer iron cores. With tilting function, the stacked core can be tilted up to 90° for being taken away from the table easily. The transformer core stacking table adopts an adjustable mode to improve tilting accuracy and speed regulation accuracy. Furthermore, the transformer core stacking table is provided with a linear guide and a hydraulic station for tilting stacked cores. The transformer core stacking table features smooth tilting and easy to operate, which assures the quality of laminating iron cores and improves the production efficiency.





Main components of transformer core stacking table FZT-1T



  • Main frame
  • Hydraulic station
  • Linear guide
  • Control board



Main parameters of transformer core stacking table FZT-1T



Typical standard specifications of transformer core stacking table FZT-1T are shown below, however, the stacking table can also be manufactured as requested.

Platform Size: 1300×1000mm
Max Load Capacity: 1000Kg
Stacked Accuracy: 0.1 ~ 0.2mm
Table Height: 1000mm
Driven Mode: Hydraulic
Main Power: 1.5KW
Max. Iron Core Thickness: 400mm
Tilting Speed: 90°/Min(Stepless speed regulating)
Distance Between Columns: Adjustable



Making Transformer Core Stacking Table Laminating Sheet With Tilting Function 0

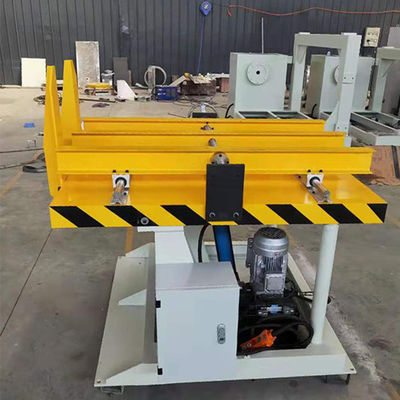

Fig 1: Transformer core stacking table FZT-1T's full view



Making Transformer Core Stacking Table Laminating Sheet With Tilting Function 1

Fig 2: Transformer core stacking table FZT-1T's hydraulic station



Making Transformer Core Stacking Table Laminating Sheet With Tilting Function 2Making Transformer Core Stacking Table Laminating Sheet With Tilting Function 3Making Transformer Core Stacking Table Laminating Sheet With Tilting Function 4Making Transformer Core Stacking Table Laminating Sheet With Tilting Function 5Making Transformer Core Stacking Table Laminating Sheet With Tilting Function 6Making Transformer Core Stacking Table Laminating Sheet With Tilting Function 7Making Transformer Core Stacking Table Laminating Sheet With Tilting Function 8Making Transformer Core Stacking Table Laminating Sheet With Tilting Function 9
