| Machine Name: | Transformer Core Stacking Table | Application: | Stacking And Tilting Core |
|---|---|---|---|
| Table Size: | 1600x1400mm | Table Height: | 1000mm |
| Max. Loading: | 3000kg | Tilting Mode: | Hydraulic |
| Color: | As Requested | Warranty: | 12 Months |
| High Light: | Silicon Transformer Core Stacking Table,Hydraulic Transformer Core Tilting Table,Silicon Steel Transformer Core Tilting Table |
||
Transformer Core Stacking Table Assembly Silicon Steel Sheet And Tilt Core
Description of transformer core stacking table FZT-3T
Transformer core stacking table FZT-3T is a professional industrial equipment for stacking silicon steel to make transformer core. After the core stacked, the transformer core stacking table can tilt up the stacked core to 90° for taking away the stacked iron core easily. The tilting actions is driven hydraulic and the tilting speed can be adjusted. The transformer core stacking table features easy to operate, tilting smoothly and so on.
Quick details of transformer core stacking table FZT-3T
Main components of transformer core stacking table FZT-3T
Main parameters of transformer core stacking table FZT-3T
Typical standard specifications of transformer core stacking table FZT-3T are shown below, however, the stacking table can also be manufactured as requested.
| No. | Item | FZT-3T |
| 1 | Table Size(LxW): | 1600×1400mm |
| 2 | Table Height: | 1000mm |
| 3 | Max. Capacity: | 3000Kg |
| 4 | Max. Stacking Thickness: | 900mm |
| 5 | Tilting Mode: | Hydraulic |
| 6 | Tilting Speed: | 90°/Min, Stepless |
| 7 | Distance Between Columns: | Adjustable |
| 8 | Main Power: | 1.5KW |
| 9 | Warranty: | 12 months |

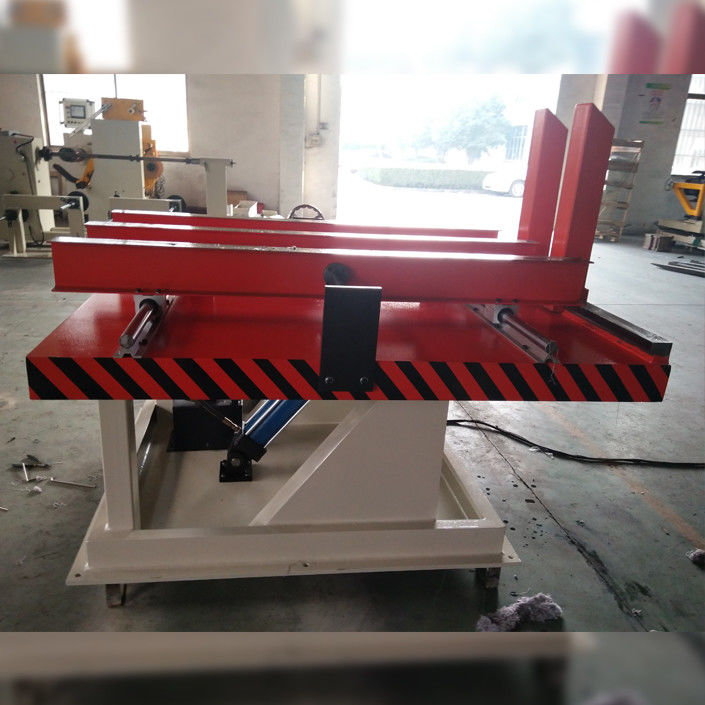

Fig 1: Transformer core stacking table FZT-3T's full view
Fig 2: Transformer core stacking table FZT-3T's hand wheel
