Adjustable Transformer Core Stacking Table Making Core

Adjustable Transformer Core Stacking Table Making Core

Adjustable Transformer Core Stacking Table Making Core
Adjustable Transformer Core Stacking Table Making Core
video play

Large Image :  Adjustable Transformer Core Stacking Table Making Core Get Best Price

Product Details:
Place of Origin: China
Brand Name: STT
Certification: CE, etc
Model Number: ZPT-1T
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Price: negotiable
Packaging Details: seaworthy packing
Delivery Time: 35 days
Payment Terms: T/T, L/C
Supply Ability: 100 sets per year
Detailed Product Description
Name: Transformer Core Stacking Table Function: Stacking Silicon Steel Sheet
Platform Height: 850mm Maximum Capacity: 1000kg
Platform Stroke: 500mm Warranty: 12 Months
Motor Power: 1.5kw Weight: 1500kg
High Light:

Transformer Core Stacking Table Adjustable

,

Adjustable Lap Core Stacking Table

,

21MPa Transformer Core Stacking Table

Adjustable Transformer Core Stacking Table Lap Core Stacking Table Making Core





Description of transformer core stacking table ZPT-1T



Amorphous transformer iron core stacking table ZPT-1T is one kind of adjustable stacking table for making amorphous transformer lap core. The transformer core stacking table can be used to assembly different kinds of oil type transformer cores and dry type transformer cores. The height and the size of the table can be adjusted according to the size of the core being stacked. With hydraulic cylinders, the transformer core stacking table can be tilt the stacked core for being taken away from the table easily. It is very easy to operate the table with a hand held controller.





Quick details of transformer core stacking table ZPT-1T

  • Working height 850mm
  • Hydraulic station
  • Linear guide
  • Maximum capacity 1000kg
  • Motor power 1.5kw
  • Hydraulic pressure 21MPa



Main Parameters of transformer core stacking table ZPT-1T



Typical standard specifications of transformer core stacking table ZPT-1T are shown below, however, the stacking table can also be manufactured as requested.

No. Item ZPT-1T
1 Working height 850mm
2 Applicable Product Size

L:700-1600mm

W:360-700mm

H:400-900

3 Maximum Capacity 1000Kg
4 Lifting Platform Stroke 300mm
5 Lifting Speed 40mm/s
6 Total Power 1.5Kw
8 Total Weight 1500Kg
8 Applicable Transformer capacity 30KVA-2000KVA
9 Tilting Angle 90°
10 Hydraulic Working Pressure 21MPa



Adjustable Transformer Core Stacking Table Making Core 0

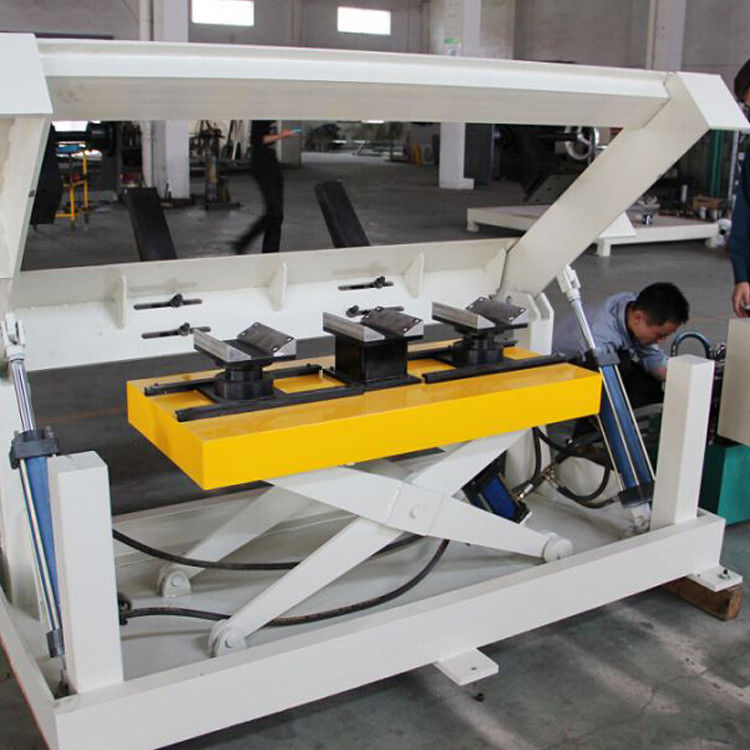

Fig 1:Transformer core stacking table ZPT-1T's full view



Adjustable Transformer Core Stacking Table Making Core 1

Fig 2: Transformer core stacking table ZPT-1T's tilting



Adjustable Transformer Core Stacking Table Making Core 2Adjustable Transformer Core Stacking Table Making Core 3Adjustable Transformer Core Stacking Table Making Core 4Adjustable Transformer Core Stacking Table Making Core 5Adjustable Transformer Core Stacking Table Making Core 6Adjustable Transformer Core Stacking Table Making Core 7Adjustable Transformer Core Stacking Table Making Core 8
