C Shaped Core Silicon Steel Cutting Machine For Unicore Cutter Making

C Shaped Core Silicon Steel Cutting Machine For Unicore Cutter Making

C Shaped Core Silicon Steel Cutting Machine For Unicore Cutter Making
C Shaped Core Silicon Steel Cutting Machine For Unicore Cutter Making

Large Image :  C Shaped Core Silicon Steel Cutting Machine For Unicore Cutter Making Get Best Price

Product Details:
Place of Origin: China
Brand Name: STT
Model Number: UCM400
Payment & Shipping Terms:
Minimum Order Quantity: 1
Price: negotiable
Packaging Details: seaworthy packing
Delivery Time: 45 days
Payment Terms: T/T, L/C
Supply Ability: 100 sets per year
Detailed Product Description
Name: Unicore Cutting Machine Decoiler: Single Head
Machine Color: Optional Warranty: 12 Months
Air Pressure: 1 Mpa Bending Angle: 45°
Decoiler Capacity: 1000kg Decoiler Expanding: Φ450mm ~ Φ510mm
High Light:

C Shaped Unicore Cutter

,

Silicon Steel Cutting Machine C Shaped

,

C Shaped Unicore Cutting Machine

Unicore Cutter Making C Shaped Core Silicon Steel Cutting Machine





Introduction of silicon steel cutting machine UCM400



Silicon steel cutting machine UCM400 is a special cutting machine for making C shaped cores and other similar products. The silicon steel cutting machine is mainly used to cut silicon steel to make rectangle open core for transformer. The silicon steel cutting machine can cut the strip with maximum width 400mm or two strips with maximum width 190mm at once. The cut core can be used in oil transformers, dry transformers and traction transformers with high voltage 10 ~ 35kV and capacity 30KVA ~ 3150KVA. The cutter’s blades are made of cemented carbide.The dereeler can expand and extract for putting and fixing the silicon steel roll easily, which is driven hydraulically. With a touch screen, it is very easy to operate the silicon steel cutting machine.





Main parts of silicon steel cutting machine UCM400



1. Main machine

2. Single head foil dereeler

3. Floor support plate

4. One set of cutter





Main parameters of silicon steel cutting machine UCM400



Typical standard specifications of silicon steel cutting machine UCM400 are shown below, however, the cutting machine can also be manufactured as requested.



Silicon steel sheet width (single) Maximum 400mm
Silicon steel sheet width (double) Maximum 190mm
Cutting speed adjustable
Bending angle of silicon steel sheet 45°
Foil dereeler Hydraulic expanding
Foil dereeler expanding range Φ450mm ~ Φ510mm
Foil dereeler capacity 1000kg
Silicon steel roll inner diameter Φ500mm
Silicon steel roll outer diameter Φ1000mm maximum
Power Supply 380V 50Hz
Power 6kw
Machine dimension(LxWxH): 7000×1800×1500mm



C Shaped Core Silicon Steel Cutting Machine For Unicore Cutter Making 0

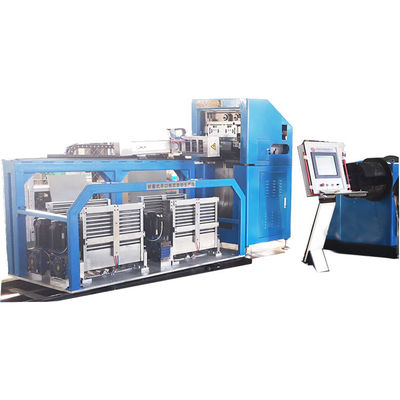

Fig 1: Silicon steel cutting machine UCM400's full view



C Shaped Core Silicon Steel Cutting Machine For Unicore Cutter Making 1

Fig 2: Silicon steel cutting machine UCM400's cut product



C Shaped Core Silicon Steel Cutting Machine For Unicore Cutter Making 2C Shaped Core Silicon Steel Cutting Machine For Unicore Cutter Making 3

C Shaped Core Silicon Steel Cutting Machine For Unicore Cutter Making 4C Shaped Core Silicon Steel Cutting Machine For Unicore Cutter Making 5C Shaped Core Silicon Steel Cutting Machine For Unicore Cutter Making 6C Shaped Core Silicon Steel Cutting Machine For Unicore Cutter Making 7C Shaped Core Silicon Steel Cutting Machine For Unicore Cutter Making 8
