Transformer Iron Core Stacking Table Assembling With Tilting Function

Transformer Iron Core Stacking Table Assembling With Tilting Function

Transformer Iron Core Stacking Table Assembling With Tilting Function
Transformer Iron Core Stacking Table Assembling With Tilting Function

Large Image :  Transformer Iron Core Stacking Table Assembling With Tilting Function Get Best Price

Product Details:
Place of Origin: China
Brand Name: STT
Model Number: FZT-1T
Payment & Shipping Terms:
Minimum Order Quantity: 1
Price: negotiable
Packaging Details: seaworthy packing
Delivery Time: 30 days
Payment Terms: T/T, L/C
Supply Ability: 100 sets per year
Detailed Product Description
Product Name: Transformer Iron Core Assembly Table Table Height: 1000mm
Power: 1.5kw Stacking Height: 400mm
Color: Optional Warranty: 12 Months
Max. Capacity: 1000kg Tilting: Hydraulic Driven
High Light:

Transformer Iron Core Stacking Table

,

Tilting Transformer Iron Core Table

,

Tilting Function Transformer Core Stacking Table

Transformer Iron Core Stacking Table Assembling Core Table With Tilting Function





Description of transformer core stacking table FZT-1T



Transformer core stacking table FZT-1T is mainly used to stack iron cores to make transformer core. The transformer core stacking table can be used to stack different sizes of transformer iron cores. With tilting function, the stacked core can be tilted up to 90°, which make the stacked iron cores be taken away from the table easily. The tilting speed of the transformer core stacking table can be adjusted stepless. Furthermore, the transformer core stacking table is provided with a linear guide and a hydraulic station for tilting stacked cores. The transformer core stacking table features smooth tilting and easy operation, which assures the quality of laminating iron cores and improves the production efficiency.





Main components of transformer core stacking table FZT-1T

  • Main frame
  • Hydraulic station
  • Linear guide
  • Control board



Main parameters of transformer core stacking table FZT-1T



Typical standard specifications of transformer core stacking table FZT-1T are shown below, however, the stacking table can also be manufactured as requested.

Platform Size: 1300×1000mm
Max Load Capacity: 1000Kg
Stacked Accuracy: 0.1 ~ 0.2mm
Table Height: 1000mm
Driven Mode: Hydraulic
Main Power: 1.5KW
Max. Iron Core Thickness: 400mm
Tilting Speed: 90°/Min(Stepless speed regulating)
Distance Between Columns: Adjustable



Transformer Iron Core Stacking Table Assembling With Tilting Function 0

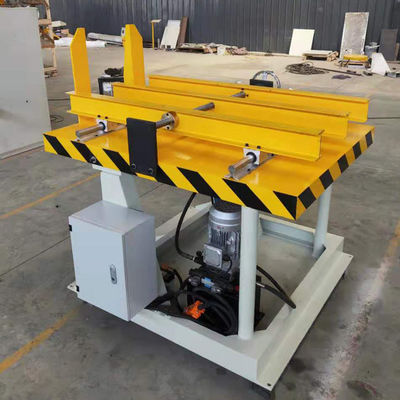

Fig 1: Transformer core stacking table FZT-1T's full view



Transformer Iron Core Stacking Table Assembling With Tilting Function 1

Fig 2: Transformer core stacking table FZT-1T's hydraulic station



Transformer Iron Core Stacking Table Assembling With Tilting Function 2Transformer Iron Core Stacking Table Assembling With Tilting Function 3Transformer Iron Core Stacking Table Assembling With Tilting Function 4Transformer Iron Core Stacking Table Assembling With Tilting Function 5Transformer Iron Core Stacking Table Assembling With Tilting Function 6Transformer Iron Core Stacking Table Assembling With Tilting Function 7Transformer Iron Core Stacking Table Assembling With Tilting Function 8Transformer Iron Core Stacking Table Assembling With Tilting Function 9
