Transformer Core Stacking Table Silicon Steel Sheet Core Assembly Platform

Transformer Core Stacking Table Silicon Steel Sheet Core Assembly Platform

Transformer Core Stacking Table Silicon Steel Sheet Core Assembly Platform
Transformer Core Stacking Table Silicon Steel Sheet Core Assembly Platform

Large Image :  Transformer Core Stacking Table Silicon Steel Sheet Core Assembly Platform Get Best Price

Product Details:
Place of Origin: China
Brand Name: STT
Model Number: FZT-3T
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Price: negotiable
Packaging Details: seaworthy packing
Delivery Time: 35 days
Payment Terms: T/T, L/C
Supply Ability: 100 sets per year
Detailed Product Description
Product Name: Transformer Core Stacking Table Usage: Stacking Silicon Steel Sheet
Platform Size: 1600x1400mm Platform Height: 1000mm
Max. Loading: 3000kg Tilting Mode: Hydraulic
Color: As Requested Warranty: 12 Months
High Light:

Silicon Steel Transformer Stacking Table

,

Hydraulic Transformer Stacking Table

,

1000mm Platform Height Stacking Table

Transformer Core Stacking Table Silicon Steel Sheet Core Assembly Platform





Description of transformer core stacking table FZT-3T



Transformer core stacking table FZT-3T is a special industrial equipment and one kind of assembly platforms for stacking silicon steel sheet to make transformer core. With a hydraulic stiaon, the transformer core stacking table can tilt up the stacked core to 90° for taking away the stacked iron core easily. The tilting actions is driven hydraulic and the tilting speed can be adjusted. With a hand held controler, it is very easy to operate the transformer core stacking table.





Quick details of transformer core stacking table FZT-3T

  • The table size:1600x1400mm
  • Table height:1000mm
  • Power: 1.5kw
  • Color: optional



Main components of transformer core stacking table FZT-3T

  • Main frame
  • Hydraulic station
  • Linear guide
  • Control panel



Main parameters of transformer core stacking table FZT-3T



Typical standard specifications of transformer core stacking table FZT-3T are shown below, however, the stacking table can also be manufactured as requested.



No. Item FZT-3T
1 Table Size(LxW): 1600×1400mm
2 Table Height: 1000mm
3 Max. Capacity: 3000Kg
4 Max. Stacking Thickness: 900mm
5 Tilting Mode: Hydraulic
6 Tilting Speed: 90°/Min(Stepless speed regulating)
7 Distance Between Columns: Adjustable
8 Main Power: 1.5KW
9 Warranty: 12 months



Transformer Core Stacking Table Silicon Steel Sheet Core Assembly Platform 0

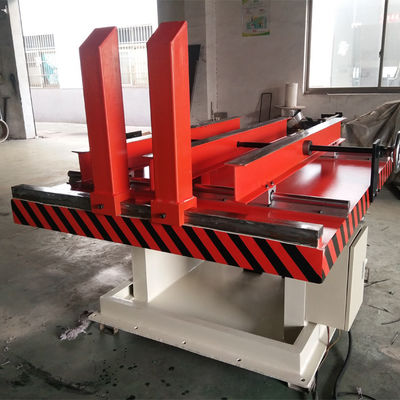

Fig 1: Transformer core stacking table FZT-3T's full view



Transformer Core Stacking Table Silicon Steel Sheet Core Assembly Platform 1

Fig 2: Transformer core stacking table FZT-3T's hand wheel

Transformer Core Stacking Table Silicon Steel Sheet Core Assembly Platform 2Transformer Core Stacking Table Silicon Steel Sheet Core Assembly Platform 3Transformer Core Stacking Table Silicon Steel Sheet Core Assembly Platform 4Transformer Core Stacking Table Silicon Steel Sheet Core Assembly Platform 5Transformer Core Stacking Table Silicon Steel Sheet Core Assembly Platform 6Transformer Core Stacking Table Silicon Steel Sheet Core Assembly Platform 7Transformer Core Stacking Table Silicon Steel Sheet Core Assembly Platform 8Transformer Core Stacking Table Silicon Steel Sheet Core Assembly Platform 9
