Automatic Tilting Platform Transformer Core Stacking Table Making Lap Core

Automatic Tilting Platform Transformer Core Stacking Table Making Lap Core

Automatic Tilting Platform Transformer Core Stacking Table Making Lap Core
Automatic Tilting Platform Transformer Core Stacking Table Making Lap Core
video play

Large Image :  Automatic Tilting Platform Transformer Core Stacking Table Making Lap Core Get Best Price

Product Details:
Place of Origin: China
Brand Name: STT
Model Number: ZPT-1T
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Price: negotiable
Packaging Details: seaworthy packing
Delivery Time: 35 days
Payment Terms: T/T, L/C
Supply Ability: 100 sets per year
Detailed Product Description
Machine Name: Transformer Core Stacking Table Usage: Stacking Silicon Steel Sheet
Platform Height: 850mm Maximum Capacity: 1000kg
Stroke: 300mm Warranty: 1 Year
Motor Power: 1.5kw Weight: 1500kg
High Light:

Automatic Tilting Platform Stacking Table

,

Lap Core Stacking Table

,

Automatic Tilting Transformer Core Stacking Table

Automatic Tilting Platform Transformer Core Stacking Table Making Lap Core





Description of transformer core stacking table ZPT-1T



Transformer core stacking table ZPT-1T is one kind of adjustable stacking tables, which can be used to make amorphous transformer lap core. The transformer core stacking table can be used to assembly different kinds of transformer cores and other similar products. The height and the size of the table can be adjusted according to the size of the core being stacked. The transformer core stacking table can be tilt the stacked core with a hydraulic station, which make the stacked core being taken away from the table easily.The transformer core stacking table can be operated very easily with a hand held controller.





Quick details of transformer core stacking table ZPT-1T

  • Working height 850mm
  • Hydraulic station
  • Linear guide
  • Maximum capacity 1000kg
  • Motor power 1.5kw
  • Hydraulic pressure 21MPa



Main Parameters of transformer core stacking table ZPT-1T



Typical standard specifications of transformer core stacking table ZPT-1T are shown below, however the stacking table can also be manufactured as requested.

No. Item ZPT-1T
1 Working height 850mm
2 Applicable Product Size

L:700-1600mm

W:360-700mm

H:400-900

3 Maximum Capacity 1000Kg
4 Lifting Platform Stroke 300mm
5 Lifting Speed 40mm/s
6 Total Power 1.5Kw
8 Total Weight 1500Kg
8 Applicable Transformer capacity 30KVA-2000KVA
9 Tilting Angle 90°
10 Hydraulic Working Pressure 21MPa



Automatic Tilting Platform Transformer Core Stacking Table Making Lap Core 0

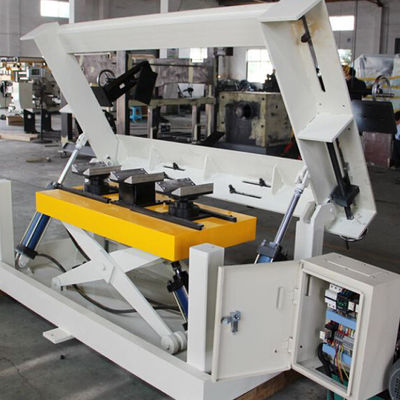

Fig 1:Transformer core stacking table ZPT-1T's full view



Automatic Tilting Platform Transformer Core Stacking Table Making Lap Core 1

Fig 2: Transformer core stacking table ZPT-1T's tilting



Automatic Tilting Platform Transformer Core Stacking Table Making Lap Core 2Automatic Tilting Platform Transformer Core Stacking Table Making Lap Core 3Automatic Tilting Platform Transformer Core Stacking Table Making Lap Core 4Automatic Tilting Platform Transformer Core Stacking Table Making Lap Core 5Automatic Tilting Platform Transformer Core Stacking Table Making Lap Core 6Automatic Tilting Platform Transformer Core Stacking Table Making Lap Core 7Automatic Tilting Platform Transformer Core Stacking Table Making Lap Core 8
