Product Details:
Payment & Shipping Terms:
|
| Product Name: | Unicore Cutting Machine | Decoiler: | Single |
|---|---|---|---|
| Machine Color: | Optional | Warranty: | 12 Months |
| Air Pressure: | 1 Mpa | Bending Angle: | 45° |
| Decoiler Capacity: | 1000kg | Decoiler Expanding: | Φ450mm ～ Φ510mm |
| High Light: | Automatic Unicore Making Equipment,Unicore Silicon Steel Cutter,Auto Unicore Making Equipment |
||
Automatic Unicore Making Equipment Silicon Steel Cutting Machine
Introduction of silicon steel cutting machine UCM400
Silicon steel cutting machine UCM400 is a professional equipment for cutting silicon steel to make C shaped cores and other similar products. Rectangle open core of transformer can be made with this equipment. The equipment can be used to cut the silicon steel with maximum width 400mm. Oil immersed transformer, cast resin transformer and others can be made with this kind of core. The machine features easy operation, high automatic and so on.
Main parts of silicon steel cutting machine UCM400
1. Main machine
2. Single head foil dereeler
3. Floor support plate
4. One set of cutter
Main parameters of silicon steel cutting machine UCM400
Typical standard specifications of silicon steel cutting machine UCM400 are shown below, however, the cutting machine can also be manufactured as requested.
| Silicon steel sheet width (single) | Maximum 400mm |
| Silicon steel sheet width (double) | Maximum 190mm |
| Cutting speed | adjustable |
| Bending angle of silicon steel sheet | 45° |
| Foil dereeler | Hydraulic expanding |
| Foil dereeler expanding range | Φ450mm ～ Φ510mm |
| Foil dereeler capacity | 1000kg |
| Silicon steel roll inner diameter | Φ500mm |
| Silicon steel roll outer diameter | Φ1000mm maximum |
| Power Supply | 380V 50Hz |
| Power | 6kw |
| Machine dimension(LxWxH): | 7000×1800×1500mm |

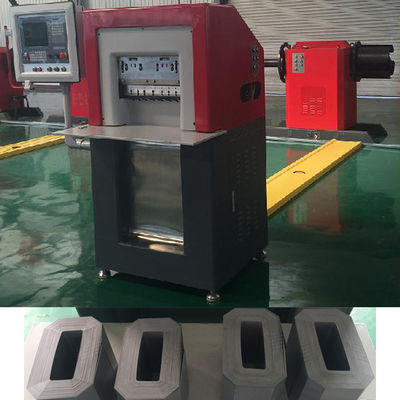

Fig 1: Silicon steel cutting machine UCM400's full view
Fig 2: Silicon steel cutting machine UCM400's cut product
