Core Slitting Machine Making Silicon Strip For Transformer Core Legs

Core Slitting Machine Making Silicon Strip For Transformer Core Legs

Core Slitting Machine Making Silicon Strip For Transformer Core Legs
Core Slitting Machine Making Silicon Strip For Transformer Core Legs

Large Image :  Core Slitting Machine Making Silicon Strip For Transformer Core Legs Get Best Price

Product Details:
Place of Origin: China
Brand Name: STT
Model Number: ZJX1250
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Price: negotiable
Packaging Details: seaworthy packing
Delivery Time: 90 days
Payment Terms: T/T, L/C
Supply Ability: 100 sets per year
Detailed Product Description
Name: Strip Slitting Machine Function: Slit Silicon Steel Sheet
Roll Outer Diameter: 1200mm, Maximum Roll Inner Diameter: 500mm
Strip Thickness: 0.15 ~ 0.6mm Slitting Width: 500 ~ 1250mm
Machine Color: Optional Warranty: 12 Months
High Light:

Silicon Strip Core Slitter

,

Silicon Strip Core Slitting Machine

,

Transformer Core Slitter

Core Slitting Machine Making Silicon Strip For Transformer Core





Description of core slitting machine ZJX1250



Core slitting machine ZJX1250 is a special equipment for cutting silicon steel sheet to make different widthes of strips. With cut to length line, these strips can be cut again to make transformer core's outer legs, center legs and VN yoke. The core slitting machine's control system is based on PLC and the slitting speed can be adjusted according to needs. The core slitting machine is provided with six sets of cutters, however, more cutters can be added for slitting smalled strips. The core slitting machine features high automation, easy operation and so on. It is very easy to operate the core slitting machine.





Quick details of core slitting machine ZJX1250

  • Decoiler expanding range Ø470 ~ 520mm
  • Sheet width 500 ~ 1250 mm
  • Sheet thickness 0.15 ~ 0.6mm
  • 6 sets of cutters
  • Feeding speed 120m/min
  • Motor power 46kw



Main components of core slitting machine ZJX1250



1. Trolley for loading and unloading material

2. Decoiler

3. Material receiver

4. Movable guide device

5. Slitting device

6. Winder

7. Hydraulic station and pneumatic system

8. Electrical control cabinet and console





Main parameters of core slitting machine ZJX1250



Typical standard specifications of core slitting machine ZJX1250 are shown below, however, the core slitting machine can also be manufactured as requested.

Decoiler expanding range: Ø470 ~ 520mm
Coil ID: Ø495 ~ 510mm
Maximum coil OD: Ø1200mm
Maximum coil weight: 5000kg
Cutting width: 500 ~ 1250 mm
Cutting thickness: 0.15 ~ 0.6 mm
Cutting width tolerance: ±0.10mm
Cutter: 6 sets
Feeding speed: 120 m/min
Cutting burring: ≤0.02 mm
Power: 46 kw



Core Slitting Machine Making Silicon Strip For Transformer Core Legs 0

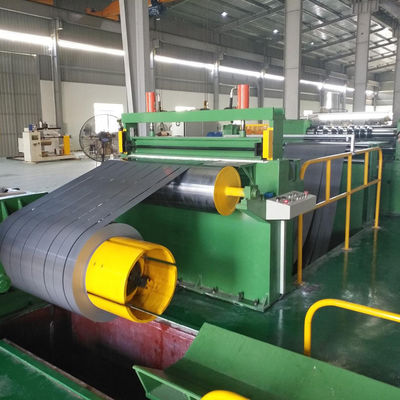

Fig 1: Core slitting machine ZJX1250's front view

Core Slitting Machine Making Silicon Strip For Transformer Core Legs 1
Fig 2: Core slitting machine ZJX1250's winder

Core Slitting Machine Making Silicon Strip For Transformer Core Legs 2Core Slitting Machine Making Silicon Strip For Transformer Core Legs 3
Core Slitting Machine Making Silicon Strip For Transformer Core Legs 4
Core Slitting Machine Making Silicon Strip For Transformer Core Legs 5Core Slitting Machine Making Silicon Strip For Transformer Core Legs 6Core Slitting Machine Making Silicon Strip For Transformer Core Legs 7Core Slitting Machine Making Silicon Strip For Transformer Core Legs 8
