Transformer Core Stacking Table Assembling And Tilting Silicon Steel Iron Core

Transformer Core Stacking Table Assembling And Tilting Silicon Steel Iron Core

Transformer Core Stacking Table Assembling And Tilting Silicon Steel Iron Core
Transformer Core Stacking Table Assembling And Tilting Silicon Steel Iron Core

Large Image :  Transformer Core Stacking Table Assembling And Tilting Silicon Steel Iron Core Get Best Price

Product Details:
Place of Origin: China
Brand Name: STT
Model Number: FZT-1T
Payment & Shipping Terms:
Minimum Order Quantity: 1
Price: negotiable
Packaging Details: seaworthy packing
Delivery Time: 30 days
Payment Terms: T/T, L/C
Supply Ability: 100 sets per year
Detailed Product Description
Name: Transformer Iron Core Assembly Table Working Height: 1000mm
Power: 1.5kw Stacking Height: 400mm
Table Color: Optional Warranty: 12 Months
Max. Capacity: 1000kg Tilting: Hydraulic Driven
High Light:

Iron Transformer Core Stacking Table

,

Silicon Steel Iron Core Stacking Table

,

400mm Height Transformer Core Stacking Table

Transformer Core Stacking Table Assembling And Tilting Silicon Steel Iron Core





Description of transformer core stacking table FZT-1T



Transformer core stacking table FZT-1T is mainly used to stack transformer silicon steel iron cores. The transformer core stacking table can be used to stack different sizes of silicon steel strip for making different sizes of transformer core. The transformer core stacking table can also tilt the stacked core for taking the stacked core away from the table easily. The tilting speed of the transformer core stacking table can be adjusted. The transformer core stacking table is provided with a linear guide and a hydraulic station for tilting stacked cores. The transformer core stacking table features smooth tilting, which assures the quality of laminating iron cores and improves the production efficiency. It is very easy to operate the table.





Main components of transformer core stacking table FZT-1T

  • Main frame
  • Hydraulic station
  • Linear guide
  • Control board



Main parameters of transformer core stacking table FZT-1T



Typical standard specifications of transformer core stacking table FZT-1T are shown below, however, the stacking table can also be manufactured as requested.

Platform Size: 1300×1000mm
Max Load Capacity: 1000Kg
Stacked Accuracy: 0.1 ~ 0.2mm
Table Height: 1000mm
Driven Mode: Hydraulic
Main Power: 1.5KW
Max. Iron Core Thickness: 400mm
Tilting Speed: 90°/Min(Stepless speed regulating)



Transformer Core Stacking Table Assembling And Tilting Silicon Steel Iron Core 0

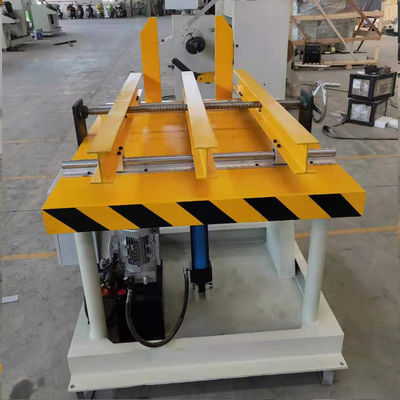

Fig 1: Transformer core stacking table FZT-1T's full view



Transformer Core Stacking Table Assembling And Tilting Silicon Steel Iron Core 1

Fig 2: Transformer core stacking table FZT-1T's hydraulic station



Transformer Core Stacking Table Assembling And Tilting Silicon Steel Iron Core 2Transformer Core Stacking Table Assembling And Tilting Silicon Steel Iron Core 3Transformer Core Stacking Table Assembling And Tilting Silicon Steel Iron Core 4Transformer Core Stacking Table Assembling And Tilting Silicon Steel Iron Core 5Transformer Core Stacking Table Assembling And Tilting Silicon Steel Iron Core 6Transformer Core Stacking Table Assembling And Tilting Silicon Steel Iron Core 7Transformer Core Stacking Table Assembling And Tilting Silicon Steel Iron Core 8Transformer Core Stacking Table Assembling And Tilting Silicon Steel Iron Core 9
