Strip Silicon Steel Cutting Machine Unicore Cutter Making Transformer Core

Strip Silicon Steel Cutting Machine Unicore Cutter Making Transformer Core

Strip Silicon Steel Cutting Machine Unicore Cutter Making Transformer Core
Strip Silicon Steel Cutting Machine Unicore Cutter Making Transformer Core

Large Image :  Strip Silicon Steel Cutting Machine Unicore Cutter Making Transformer Core Get Best Price

Product Details:
Place of Origin: China
Brand Name: STT
Model Number: UCM400
Payment & Shipping Terms:
Minimum Order Quantity: 1
Price: negotiable
Packaging Details: seaworthy packing
Delivery Time: 45 days
Payment Terms: T/T, L/C
Supply Ability: 100 sets per year
Detailed Product Description
Name: Unicore Cutting Machine Decoiler: Single Head
Machine Color: Optional Warranty: 12 Months
Air Pressure: 1 Mpa Bending Angle: 45°
Decoiler Capacity: 1000kg Decoiler Expanding: Φ450mm ~ Φ510mm
High Light:

strip silicon steel cutting machine

,

transformer core silicon steel cutting machine

Silicon Steel Strip Cutting Machine Unicore Cutter Making Transformer Core





Introduction of silicon steel cutting machine UCM400



Silicon steel cutting machine UCM400 is a special cutter for cutting silicon steel strip to make C shaped cores and other similar products. The silicon steel cutting machine can be used to cut the silicon steel strip with maximum width 400mm. This kind of core can be used in oil immersed transformers, dry type transformers and other similar products. The silicon steel cutting machine features high automation, smooth running and easy operation etc.





Main parts of silicon steel cutting machine UCM400

  1. Main machine
  2. Single head foil dereeler
  3. Floor support plate
  4. One set of cutter



Main parameters of silicon steel cutting machine UCM400



Typical standard specifications of silicon steel cutting machine UCM400 are shown below, however, the cutting machine can also be manufactured as requested.



Silicon steel sheet width (single) Maximum 400mm
Silicon steel sheet width (double) Maximum 190mm
Cutting speed adjustable
Bending angle of silicon steel sheet 45°
Foil dereeler Hydraulic expanding
Foil dereeler expanding range Φ450mm ~ Φ510mm
Foil dereeler capacity 1000kg
Silicon steel roll inner diameter Φ500mm
Silicon steel roll outer diameter Φ1000mm maximum
Power Supply 380V 50Hz
Power 6kw
Machine dimension(LxWxH): 7000×1800×1500mm



Strip Silicon Steel Cutting Machine Unicore Cutter Making Transformer Core 0

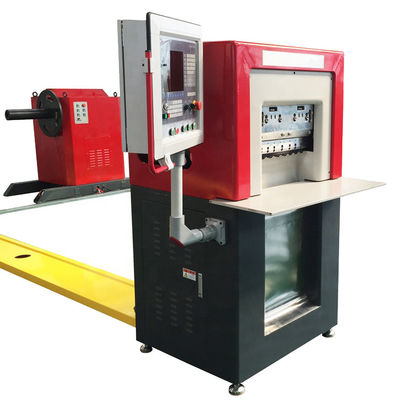

Fig 1: Silicon steel cutting machine UCM400's full view



Strip Silicon Steel Cutting Machine Unicore Cutter Making Transformer Core 1

Fig 2: Silicon steel cutting machine UCM400's cut product



Strip Silicon Steel Cutting Machine Unicore Cutter Making Transformer Core 2

Strip Silicon Steel Cutting Machine Unicore Cutter Making Transformer Core 3

Strip Silicon Steel Cutting Machine Unicore Cutter Making Transformer Core 4

Strip Silicon Steel Cutting Machine Unicore Cutter Making Transformer Core 5

Strip Silicon Steel Cutting Machine Unicore Cutter Making Transformer Core 6

Strip Silicon Steel Cutting Machine Unicore Cutter Making Transformer Core 7

Strip Silicon Steel Cutting Machine Unicore Cutter Making Transformer Core 8
