3000kg Transformer Core Stacking Table Tilting Function Making Transformer Core

3000kg Transformer Core Stacking Table Tilting Function Making Transformer Core

3000kg Transformer Core Stacking Table Tilting Function Making Transformer Core
3000kg Transformer Core Stacking Table Tilting Function Making Transformer Core

Large Image :  3000kg Transformer Core Stacking Table Tilting Function Making Transformer Core Get Best Price

Product Details:
Place of Origin: China
Brand Name: STT
Certification: CE
Model Number: FZT-3T
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Price: negotiable
Packaging Details: seaworthy packing
Delivery Time: 35 days
Payment Terms: T/T, L/C
Supply Ability: 100 sets per year
Detailed Product Description
Machine Name: Transformer Core Stacking Table Function: Stacking Silicon Steel Sheet
Table Size: 1600x1400mm Table Height: 1000mm
Max. Loading: 3000kg Tilting Mode: Hydraulic
Table Color: As Requested Warranty Period: 12 Months
High Light:

3000kg transformer core stacking table

,

tilting function transformer core stacking table

,

making transformer core stacking table

Transformer Core Stacking Table Tilting Function Making Transformer Core





Description of transformer core stacking table FZT-3T



Transformer core stacking table FZT-3T is a special table for assembly transformer core. Silicon steel sheet, i.e. transformer core legs can be stacked on the table, after being stacked, the core can be tilted up to 90 degree for being taken away from the table easily. The stacking table is driven by a hydraulic station for titling, it is very easy to being operated.





Quick details of transformer core stacking table FZT-3T

  • The table size:1600x1400mm
  • Table height:1000mm
  • Power: 1.5kw
  • Color: optional



Main components of transformer core stacking table FZT-3T

  • Main frame
  • Hydraulic station
  • Linear guide
  • Control panel



Main parameters of transformer core stacking table FZT-3T



Typical standard specifications of transformer core stacking table FZT-3T are shown below, however, the stacking table can also be manufactured as requested.



No. Item FZT-3T
1 Table Size(LxW): 1600×1400mm
2 Table Height: 1000mm
3 Max. Capacity: 3000Kg
4 Max. Stacking Thickness: 900mm
5 Tilting Mode: Hydraulic
6 Tilting Speed: 90°/Min(Stepless speed regulating)
7 Distance Between Columns: Adjustable
8 Main Power: 1.5KW
9 Warranty: 12 months

























3000kg Transformer Core Stacking Table Tilting Function Making Transformer Core 0

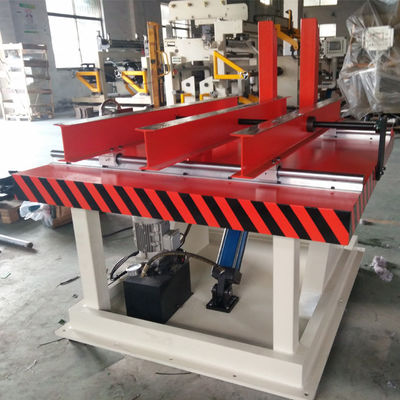

Fig 1: Transformer core stacking table FZT-3T's full view



3000kg Transformer Core Stacking Table Tilting Function Making Transformer Core 1

Fig 2: Transformer core stacking table FZT-3T's hand wheel

3000kg Transformer Core Stacking Table Tilting Function Making Transformer Core 23000kg Transformer Core Stacking Table Tilting Function Making Transformer Core 33000kg Transformer Core Stacking Table Tilting Function Making Transformer Core 43000kg Transformer Core Stacking Table Tilting Function Making Transformer Core 53000kg Transformer Core Stacking Table Tilting Function Making Transformer Core 63000kg Transformer Core Stacking Table Tilting Function Making Transformer Core 73000kg Transformer Core Stacking Table Tilting Function Making Transformer Core 83000kg Transformer Core Stacking Table Tilting Function Making Transformer Core 9
