Hydraulic Station Powered Transformer Lap Core Stacking Table 1000Kg Max Capacity

Hydraulic Station Powered Transformer Lap Core Stacking Table 1000Kg Max Capacity

Hydraulic Station Powered Transformer Lap Core Stacking Table 1000Kg Max Capacity
Hydraulic Station Powered Transformer Lap Core Stacking Table 1000Kg Max Capacity
video play

Large Image :  Hydraulic Station Powered Transformer Lap Core Stacking Table 1000Kg Max Capacity Get Best Price

Product Details:
Place of Origin: China
Brand Name: STT
Model Number: ZPT-1T
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Price: negotiable
Packaging Details: seaworthy packing
Delivery Time: 35 days
Payment Terms: T/T, L/C
Supply Ability: 100 sets per year
Detailed Product Description
Product Name: Transformer Core Stacking Table Function: Stacking Silicon Steel Sheet
Table Height: 850mm Maximum Capacity: 1000kg
Stroke: 300mm Warranty: 1 Year
Power: 1.5kw Table Weight: 1500kg
High Light:

Transformer Lap Core Stacking Table

,

1000Kg Stacking Table

,

Hydraulic Station Powered Core Stacking Table

Description of transformer core stacking table ZPT-1T



Transformer core stacking table ZPT-1T is one kind of professional equipment for stacking amorphous transformer lap cores. The transformer core stacking table is powered by a hydraulic station to lift and tilt the core. The height and the size of the table can be adjusted according to the size of the core being stacked. With hydraulic cylinders, the transformer core stacking table can be tilt the stacked core for easy taking the stacked core away from the table. With a hand held controller, it is very easy to operate the transformer core stacking table.



Quick details of transformer core stacking table ZPT-1T



  • Working height 850mm
  • Hydraulic station
  • Linear guide
  • Maximum capacity 1000kg
  • Motor power 1.5kw
  • Hydraulic pressure 21MPa





Main Parameters of transformer core stacking table ZPT-1T



Typical standard specifications of transformer core stacking table ZPT-1T are shown below, however the stacking table can also be manufactured as requested.

No. Item ZPT-1T
1 Working height 850mm
2 Applicable Product Size

L:700-1600mm

W:360-700mm

H:400-900

3 Maximum Capacity 1000Kg
4 Lifting Platform Stroke 300mm
5 Lifting Speed 40mm/s
6 Total Power 1.5Kw
8 Total Weight 1500Kg
8 Applicable Transformer capacity 30KVA-2000KVA
9 Tilting Angle 90°
10 Hydraulic Working Pressure 21MPa



Hydraulic Station Powered Transformer Lap Core Stacking Table 1000Kg Max Capacity 0

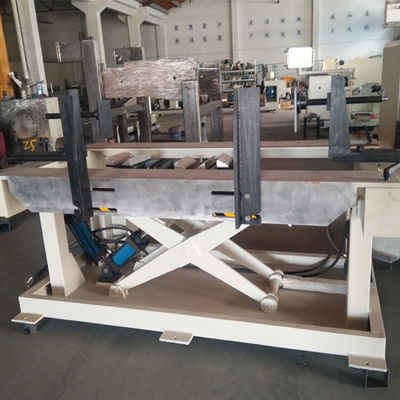

Fig 1:Transformer core stacking table ZPT-1T's full view



Hydraulic Station Powered Transformer Lap Core Stacking Table 1000Kg Max Capacity 1

Fig 2: Transformer core stacking table ZPT-1T's tilting



Hydraulic Station Powered Transformer Lap Core Stacking Table 1000Kg Max Capacity 2Hydraulic Station Powered Transformer Lap Core Stacking Table 1000Kg Max Capacity 3Hydraulic Station Powered Transformer Lap Core Stacking Table 1000Kg Max Capacity 4Hydraulic Station Powered Transformer Lap Core Stacking Table 1000Kg Max Capacity 5Hydraulic Station Powered Transformer Lap Core Stacking Table 1000Kg Max Capacity 6Hydraulic Station Powered Transformer Lap Core Stacking Table 1000Kg Max Capacity 7Hydraulic Station Powered Transformer Lap Core Stacking Table 1000Kg Max Capacity 8
