1.5kw Transformer Core Stacking Table Stacking Cores And Tilt For Taking Away

1.5kw Transformer Core Stacking Table Stacking Cores And Tilt For Taking Away

1.5kw Transformer Core Stacking Table Stacking Cores And Tilt For Taking Away
1.5kw Transformer Core Stacking Table Stacking Cores And Tilt For Taking Away

Large Image :  1.5kw Transformer Core Stacking Table Stacking Cores And Tilt For Taking Away Get Best Price

Product Details:
Place of Origin: China
Brand Name: STT
Model Number: FZT-1T
Payment & Shipping Terms:
Minimum Order Quantity: 1
Price: negotiable
Packaging Details: seaworthy packing
Delivery Time: 30 days
Payment Terms: T/T, L/C
Supply Ability: 100 sets per year
Detailed Product Description
Table Name: Transformer Iron Core Assembly Table Working Height: 1000mm
Motor Power: 1.5kw Stacking Height: 400mm
Color: Optional Warranty Period: 12 Months
Max. Capacity: 1000kg Tilting: Hydraulic Driven
High Light:

Transformer Core Stacking Table 400mm

,

Tilt Transformer Core Stacking Table

,

1.5kw Transformer Table

Transformer Core Stacking Table Stacking Cores And Tilt For Taking Away





Description of transformer core stacking table FZT-1T



Transformer core stacking table FZT-1T is a special equipment for stacking transformer cores. With adjustable distance between the beams, the transformer core stacking table can stack different sizes of transformer cores. With a hydraulic station, the transformer core stacking table can tilt the stacked core, which makes the stacked core be taken away from the table easily. Moreover, the transformer core stacking table’s tilting speed of the transformer core stacking table can also be adjusted. The transformer core stacking table features smooth tilting and easy operation etc.





Main components of transformer core stacking table FZT-1T

  • Main frame
  • Hydraulic station
  • Linear guide
  • Control board



Main parameters of transformer core stacking table FZT-1T



Typical standard specifications of transformer core stacking table FZT-1T are shown below, however, the stacking table can also be manufactured as requested.

Platform Size: 1300×1000mm
Max Load Capacity: 1000Kg
Stacked Accuracy: 0.1 ~ 0.2mm
Table Height: 1000mm
Driven Mode: Hydraulic
Main Power: 1.5KW
Max. Iron Core Thickness: 400mm
Tilting Speed: 90°/Min(Stepless speed regulating)
Distance Between Columns: Adjustable



1.5kw Transformer Core Stacking Table Stacking Cores And Tilt For Taking Away 0

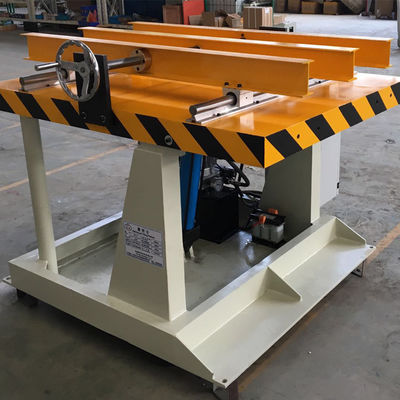

Fig 1: Transformer core stacking table FZT-1T's full view



1.5kw Transformer Core Stacking Table Stacking Cores And Tilt For Taking Away 1

Fig 2: Transformer core stacking table FZT-1T's hydraulic station



1.5kw Transformer Core Stacking Table Stacking Cores And Tilt For Taking Away 21.5kw Transformer Core Stacking Table Stacking Cores And Tilt For Taking Away 31.5kw Transformer Core Stacking Table Stacking Cores And Tilt For Taking Away 41.5kw Transformer Core Stacking Table Stacking Cores And Tilt For Taking Away 51.5kw Transformer Core Stacking Table Stacking Cores And Tilt For Taking Away 61.5kw Transformer Core Stacking Table Stacking Cores And Tilt For Taking Away 71.5kw Transformer Core Stacking Table Stacking Cores And Tilt For Taking Away 81.5kw Transformer Core Stacking Table Stacking Cores And Tilt For Taking Away 9
