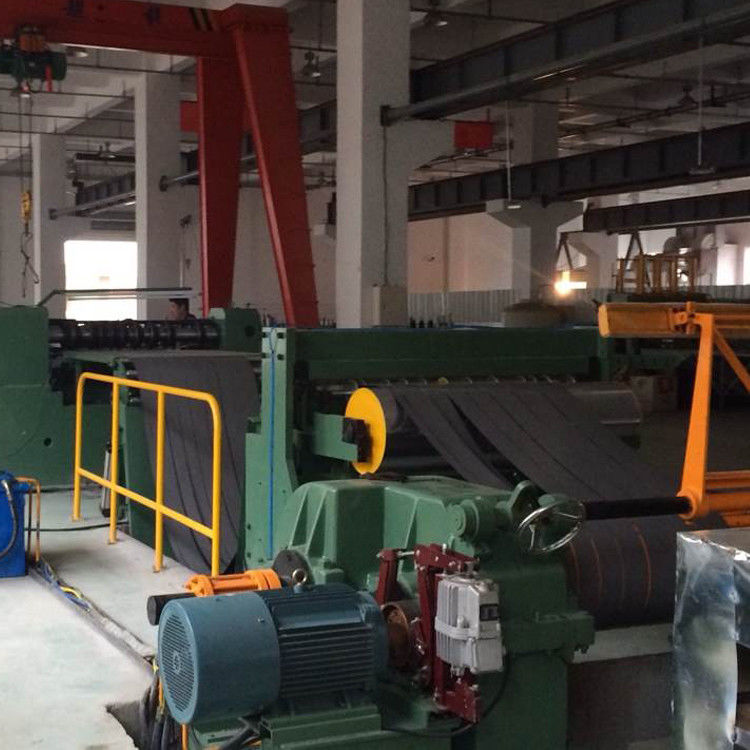

Transformer Core Slitting Machine Slit Silicon Steel Sheet Slitter

Transformer Core Slitting Machine Slit Silicon Steel Sheet Slitter

Transformer Core Slitting Machine Slit Silicon Steel Sheet Slitter
Transformer Core Slitting Machine Slit Silicon Steel Sheet Slitter

Large Image :  Transformer Core Slitting Machine Slit Silicon Steel Sheet Slitter Get Best Price

Product Details:
Place of Origin: China
Brand Name: STT
Model Number: ZJX1250
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Price: negotiable
Packaging Details: seaworthy packing
Delivery Time: 90 days
Payment Terms: T/T, L/C
Supply Ability: 100 sets per year
Detailed Product Description
Machine Name: Sheet Slitter Usage: Slit Silicon Steel Sheet
Roll Outer Diameter: 1200mm, Maximum Roll Inner Diameter: 500mm
Sheet Thickness: 0.15 ~ 0.6mm Sheet Width: 500 ~ 1250mm
Machine Color: Optional Warranty: 12 Months
High Light:

Silicon Steel Slitter Transformer

,

Core Slitting Machine 1200mm

,

Transformer Core Steel Slitter

Factory Direct Selling Silicon Steel Slitter Transformer Core Slitting Machine





Description of transformer core slitting machine ZJX1250



Transformer core slitting machine ZJX-1250 is a professional cutter for slitting the silicon steel sheet. The transformer core slitting machine can be used to cut a coiled silicon steel strip into silicon steel strips with a set width. The slit strips can be wound into coils. Moreover, The slitting speed of the transformer core slitting machine can be adjusted as requested.





Main components of transformer core slitting machine ZJX1250



1. Trolley for loading and unloading material

2. Decoiler

3. Material receiver

4. Movable guide device

5. Slitting device

6. Tensioner

7. Winder

8. Hydraulic station and pneumatic system

9. Electrical control cabinet and console





Quick details of transformer core slitting machine ZJX1250

  • Decoiler expanding range Ø470 ~ 520mm
  • Cutting width 500 ~ 1250 mm
  • Cutting thickness 0.15 ~ 0.6mm
  • Cutter 6 sets
  • Feeding speed 120m/min
  • Power 46kw
  • One year warranty



Main parameters of transformer core slitting machine ZJX1250



Typical standard specifications of transformer core slitting machine ZJX250 are shown below, however these can be easily modified as requested.

Decoiler expanding range: Ø470 ~ Ø520mm
Coil ID: Ø495 ~ Ø510mm
Maximum coil OD: Ø1200mm
Maximum coil weight: 5000kg
Cutting width: 500 ~ 1250 mm
Cutting thickness: 0.15 ~ 0.6 mm
Cutting width tolerance: ±0.10mm
Cutter: 6 sets
Feeding speed: 120 m/min
Cutting burring: ≤0.02 mm
Power: 46 kw


Transformer Core Slitting Machine Slit Silicon Steel Sheet Slitter 0
Fig 1: Core slitting machine ZJX1250's front view

Transformer Core Slitting Machine Slit Silicon Steel Sheet Slitter 1
Fig 2: Core slitting machine ZJX1250's winder

Transformer Core Slitting Machine Slit Silicon Steel Sheet Slitter 2
Transformer Core Slitting Machine Slit Silicon Steel Sheet Slitter 3
Transformer Core Slitting Machine Slit Silicon Steel Sheet Slitter 4

Transformer Core Slitting Machine Slit Silicon Steel Sheet Slitter 5
Transformer Core Slitting Machine Slit Silicon Steel Sheet Slitter 6
Transformer Core Slitting Machine Slit Silicon Steel Sheet Slitter 7
Transformer Core Slitting Machine Slit Silicon Steel Sheet Slitter 8
