| Product Name: | Sheet Slitter | Function: | Slit Silicon Steel Sheet |
|---|---|---|---|
| Roll Outer Diameter: | Ø1200mm, Maximum | Roll Inner Diameter: | Ø500mm |
| Slitting Thickness: | 0.15 ~ 0.6mm | Slitting Width: | 500 ~ 1250mm |
| Color: | As Requested | Warranty Period: | 12 Months |
| Slitting Accuracy: | ±0.1mm | Material: | Silicon Steel Sheet |
| Highlight: | 0.15mm Core Slitter,1250mm Core Slitting Machine,Automation Core Sheet Slitter |
||
High Automation And Easy Operation Core Slitting Machine
Description of core slitting machine ZJX1250
The transformer core slitting machine is a specialized piece of equipment used in the manufacturing process of transformer cores. This kind of core slitting machine is designed to accurately slit and divide electrical steel coils into narrow strips or lamination, which are essential components for transformer core assembly. The slitting machine employs precise cutting techniques, such as rotary or shear cutting, to slit the electrical steel coils into desired widths. The transformer core slitting machine is capable of handling various coil sizes and thicknesses, ensuring flexibility in the production process. The transformer core slitting machine is usually provided with six sets of cutter, which can slit five strips at once. After adding more cutters, the slitter can slit more strips at once. The core slitting machine features high automation, easy operation and so on.
Quick details of core slitting machine ZJX1250
Main components of core slitting machine ZJX1250
1. Trolley for loading and unloading material
2. Decoiler
3. Material receiver
4. Movable guide device
5. Slitting device
6. Winder
7. Hydraulic station and pneumatic system
8. Electrical control cabinet and console
Main parameters of core slitting machine ZJX1250
Typical standard specifications of core slitting machine ZJX1250 are shown below, however, the core slitting machine can also be manufactured as requested.
| Decoiler expanding range: | Ø470 ~ 520mm |
| Coil ID: | Ø495 ~ 510mm |
| Maximum coil OD: | Ø1200mm |
| Maximum coil weight: | 5000kg |
| Cutting width: | 500 ~ 1250 mm |
| Cutting thickness: | 0.15 ~ 0.6 mm |
| Cutting width tolerance: | ±0.10mm |
| Cutter: | 6 sets |
| Feeding speed: | 120 m/min |
| Cutting burring: | ≤0.02 mm |
| Power: | 46 kw |

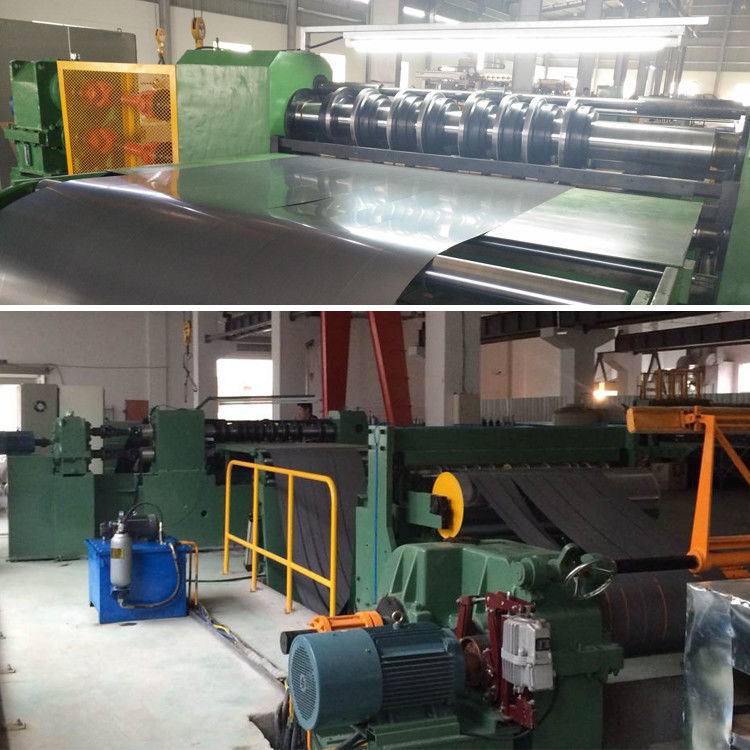

Fig 1: Core slitting machine ZJX1250's front view
Fig 2: Core slitting machine ZJX1250's winder
