Introduction of silicon steel cutting machine UCM400

Silicon steel cutting machine UCM400,also known as unicore cutting machine, is a special cutter for cutting silicon steel strip to make C shaped cores and other similar products, which can be used to cut the silicon steel strip with maximum width 400mm. The cut cores can be used in oil immersed transformers, dry type transformers and other similar products. The unicore cutting machine combines advanced cutting technology, precision measurement, and user-friendly controls to provide efficient and accurate cutting of laminations for transformer cores. These key features contribute to improved productivity, quality control, and operator safety in transformer manufacturing processes.

Main parts of silicon steel cutting machine UCM400

1. Main machine

2. Single head foil dereeler

3. Floor support plate

4. One set of cutter

Main parameters of silicon steel cutting machine UCM400

Typical standard specifications of silicon steel cutting machine UCM400 are shown below, however, the cutting machine can also be manufactured as requested.

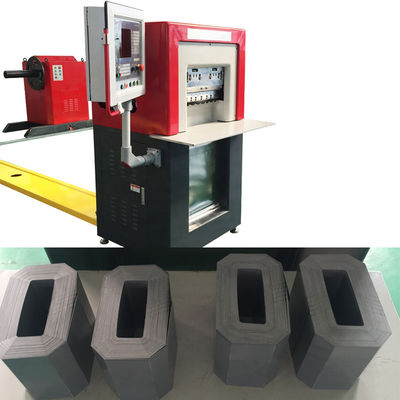

Fig 1: Silicon steel cutting machine UCM400's full view

Fig 2: Silicon steel cutting machine UCM400's cut product
