Adjustable Columns Transformer Core Stacking Table Hydraulic Tilting Mode

Adjustable Columns Transformer Core Stacking Table Hydraulic Tilting Mode

Adjustable Columns Transformer Core Stacking Table Hydraulic Tilting Mode
Adjustable Columns Transformer Core Stacking Table Hydraulic Tilting Mode

Large Image :  Adjustable Columns Transformer Core Stacking Table Hydraulic Tilting Mode Get Best Price

Product Details:
Place of Origin: China
Brand Name: STT
Model Number: FZT-3T
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Price: negotiable
Packaging Details: seaworthy packing
Delivery Time: 35 days
Payment Terms: T/T, L/C
Supply Ability: 100 sets per year
Detailed Product Description
Machine Name: Transformer Core Stacking Table Function: Stacking Silicon Steel Sheet
Table Size: 1600x1400mm Table Height: 1000mm
Max. Loading: 3000kg Tilting Mode: Hydraulic
Table Color: As Requested Warranty Period: 12 Months
High Light:

Adjustable Columns Transformer Core Stacking Table

,

Hydraulic Tilting Transformer Core Stacking Table

,

Hydraulic Tilting Stacking Table

Transformer Core Stacking Table Hydraulic Tilting Mode Adjustable Columns





Description of transformer core stacking table FZT-3T



The transformer core stacking table is a specialized piece of equipment, which is mainly used in the assembly of transformer cores. The transformer core stacking table provides a flat surface with adjustable fixtures to securely stack the lamination that form the transformer core. The transformer core stacking table plays a crucial role in the production of high-quality transformers by facilitating accurate and efficient core assembly.





Quick details of transformer core stacking table FZT-3T



  • The table size:1600x1400mm
  • Table height:1000mm
  • Power: 1.5kw
  • Color: optional



Main components of transformer core stacking table FZT-3T



  • Main frame
  • Hydraulic station
  • Linear guide
  • Hand held controller



Main parameters of transformer core stacking table FZT-3T



Typical standard specifications of transformer core stacking table FZT-3T are shown below, however, the core stacking table can also be manufactured as requested.



No. Item FZT-3T
1 Table Size(LxW): 1600×1400mm
2 Table Height: 1000mm
3 Max. Capacity: 3000Kg
4 Max. Stacking Thickness: 900mm
5 Tilting Mode: Hydraulic
6 Tilting Speed: 90°/Min(Stepless speed regulating)
7 Distance Between Columns: Adjustable
8 Main Power: 1.5KW
9 Warranty: 12 months



Adjustable Columns Transformer Core Stacking Table Hydraulic Tilting Mode 0

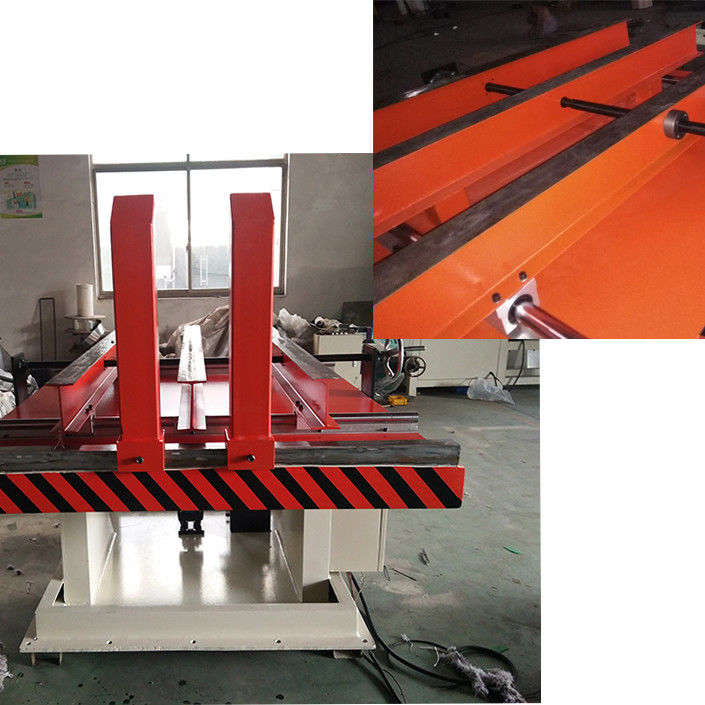

Fig 1: Transformer core stacking table FZT-3T's full view



Adjustable Columns Transformer Core Stacking Table Hydraulic Tilting Mode 1

Fig 2: Transformer core stacking table FZT-3T's hand wheel

Adjustable Columns Transformer Core Stacking Table Hydraulic Tilting Mode 2Adjustable Columns Transformer Core Stacking Table Hydraulic Tilting Mode 3Adjustable Columns Transformer Core Stacking Table Hydraulic Tilting Mode 4Adjustable Columns Transformer Core Stacking Table Hydraulic Tilting Mode 5Adjustable Columns Transformer Core Stacking Table Hydraulic Tilting Mode 6Adjustable Columns Transformer Core Stacking Table Hydraulic Tilting Mode 7Adjustable Columns Transformer Core Stacking Table Hydraulic Tilting Mode 8Adjustable Columns Transformer Core Stacking Table Hydraulic Tilting Mode 9
