120m/min Core Slitting Machine Accurate Slitting And Dividing Electrical Steel Coils

120m/min Core Slitting Machine Accurate Slitting And Dividing Electrical Steel Coils

120m/min Core Slitting Machine Accurate Slitting And Dividing Electrical Steel Coils
120m/min Core Slitting Machine Accurate Slitting And Dividing Electrical Steel Coils

Large Image :  120m/min Core Slitting Machine Accurate Slitting And Dividing Electrical Steel Coils Get Best Price

Product Details:
Place of Origin: China
Brand Name: STT
Model Number: ZJX1250
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Price: negotiable
Packaging Details: seaworthy packing
Delivery Time: 90 days
Payment Terms: T/T, L/C
Supply Ability: 100 sets per year
Detailed Product Description
Name: Sheet Slitter Usage: Slit Silicon Steel Sheet
Roll Outer Diameter: Ø1200mm, Maximum Roll Inner Diameter: Ø500mm
Sheet Thickness: 0.15 ~ 0.6mm Sheet Width: 500 ~ 1250mm
Machine Color: As Requested Warranty: 12 Months
Slitting Accuracy: ±0.1mm Material: Silicon Steel Sheet
High Light:

520mm Transformer Core Cutting Machine

,

Electrical Steel Coils Core Slitting Machine

,

0.6mm Core Slitting Machine

Core Slitting Machine Accurate Slitting And Dividing Electrical Steel Coils





Description of core slitting machine ZJX1250



The transformer core slitting machine is a special equipment to slit silicon steel, which can be used to make different width strips. These strips can be used to make transformer cores and other similar products. This kind of core slitting machine is designed to accurately slit and divide electrical steel coils into narrow strips or lamination, and the slitted strips are very essential components for transformer core assembly. The slitting machine adopts precise cutting techniques to slit the electrical steel coils into desired widths. The transformer core slitting machine is capable of handling different coils with various sizes and thicknesses, ensuring flexibility in the production process. The transformer core slitting machine is usually provided with six sets of cutter, which can slit five strips at once. After adding more cutters, the slitter can slit more strips at once. The core slitting machine features high automation, easy operation and so on.





Quick details of core slitting machine ZJX1250

  • Decoiler expanding range Ø470 ~ 520mm
  • Sheet width 500 ~ 1250 mm
  • Sheet thickness 0.15 ~ 0.6mm
  • 6 sets of cutters
  • Feeding speed 120m/min
  • Motor power 46kw



Main components of core slitting machine ZJX1250



1. Trolley for loading and unloading material

2. Decoiler

3. Material receiver

4. Movable guide device

5. Slitting device

6. Winder

7. Hydraulic station and pneumatic system

8. Electrical control cabinet and console





Main parameters of core slitting machine ZJX1250



Typical standard specifications of core slitting machine ZJX1250 are shown below, however, the core slitting machine can also be manufactured as requested.

Decoiler expanding range: Ø470 ~ 520mm
Coil ID: Ø495 ~ 510mm
Maximum coil OD: Ø1200mm
Maximum coil weight: 5000kg
Cutting width: 500 ~ 1250 mm
Cutting thickness: 0.15 ~ 0.6 mm
Cutting width tolerance: ±0.10mm
Cutter: 6 sets
Feeding speed: 120 m/min
Cutting burring: ≤0.02 mm
Power: 46 kw



120m/min Core Slitting Machine Accurate Slitting And Dividing Electrical Steel Coils 0

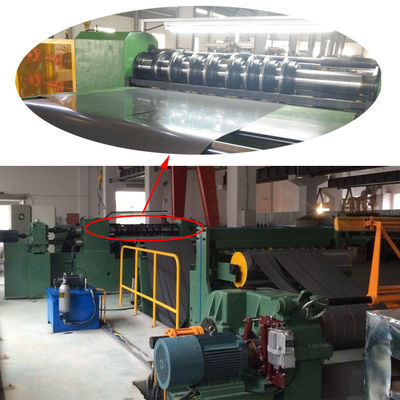

Fig 1: Core slitting machine ZJX1250's front view

120m/min Core Slitting Machine Accurate Slitting And Dividing Electrical Steel Coils 1
Fig 2: Core slitting machine ZJX1250's winder

120m/min Core Slitting Machine Accurate Slitting And Dividing Electrical Steel Coils 2
120m/min Core Slitting Machine Accurate Slitting And Dividing Electrical Steel Coils 3
120m/min Core Slitting Machine Accurate Slitting And Dividing Electrical Steel Coils 4

120m/min Core Slitting Machine Accurate Slitting And Dividing Electrical Steel Coils 5
120m/min Core Slitting Machine Accurate Slitting And Dividing Electrical Steel Coils 6
120m/min Core Slitting Machine Accurate Slitting And Dividing Electrical Steel Coils 7
120m/min Core Slitting Machine Accurate Slitting And Dividing Electrical Steel Coils 8
