Adjustable Transformer Core Stacking Table Stepless Speed Regulating

Adjustable Transformer Core Stacking Table Stepless Speed Regulating

Adjustable Transformer Core Stacking Table Stepless Speed Regulating
Adjustable Transformer Core Stacking Table Stepless Speed Regulating

Large Image :  Adjustable Transformer Core Stacking Table Stepless Speed Regulating Get Best Price

Product Details:
Place of Origin: China
Brand Name: STT
Model Number: FZT-1T
Payment & Shipping Terms:
Minimum Order Quantity: 1
Price: negotiable
Packaging Details: seaworthy packing
Delivery Time: 30 days
Payment Terms: T/T, L/C
Supply Ability: 100 sets per year
Detailed Product Description
Product Name: Transformer Iron Core Assembly Table Working Height: 1000mm
Power: 1.5kw Stacking Height: 400mm
Color: As Requested Warranty: 12 Months
Max. Capacity: 1000kg Tilting: Hydraulic Driven
Highlight:

Stepless Speed Regulating Transformer Core Machine

,

400mm Transformer Core Stacking Table

,

Transformer Core Stacking Hydraulic Tilting Platform

Adjustable Transformer Core Stacking Table Stepless Speed Regulating





Description of transformer core stacking table FZT-1T



Transformer core stacking table FZT-1T is a special equipment for stacking transformer cores. The transformer core stacking table's primary function is to facilitate the precise and efficient stacking of laminated transformer core components, which are typically made of thin layers of electrical steel material. The transformer core stacking table can stack different sizes of transformer cores with two adjustable columns. With a hydraulic station, the transformer core stacking table can tilt the stacked core after finishing stacking, which makes the stacked core be taken away from the table easily. Moreover, the transformer core stacking table’s tilting speed of the transformer core stacking table can also be adjusted. The transformer core stacking table features smooth tilting and easy operation etc.





Main components of transformer core stacking table FZT-1T

  • Main frame
  • Hydraulic station
  • Linear guide
  • Control board



Main parameters of transformer core stacking table FZT-1T



Typical standard specifications of transformer core stacking table FZT-1T are shown below, however, the stacking table can also be manufactured as requested.

Platform Size: 1300×1000mm
Max Load Capacity: 1000Kg
Stacked Accuracy: 0.1 ~ 0.2mm
Table Height: 1000mm
Driven Mode: Hydraulic
Main Power: 1.5KW
Max. Iron Core Thickness: 400mm
Tilting Speed: 90°/Min(Stepless speed regulating)
Distance Between Columns: Adjustable



Adjustable Transformer Core Stacking Table Stepless Speed Regulating 0

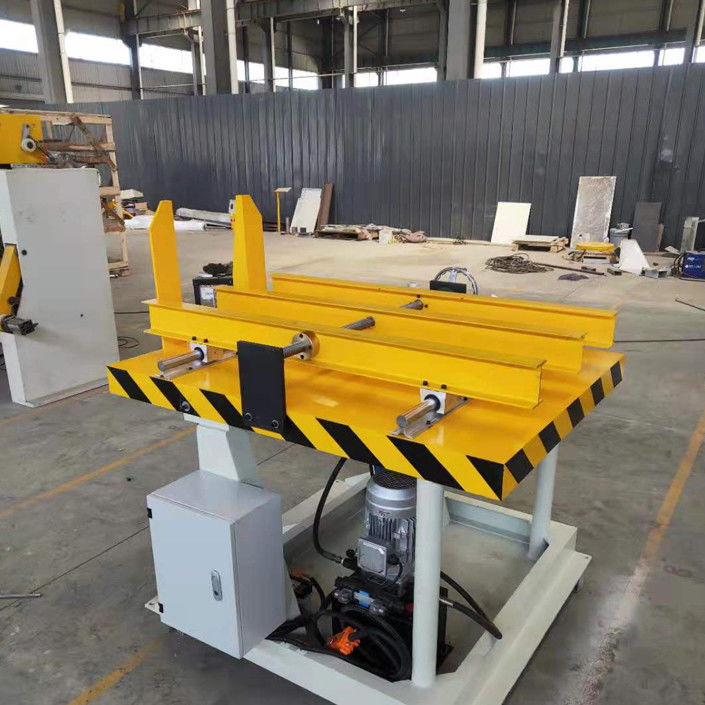

Fig 1: Transformer core stacking table FZT-1T's full view



Adjustable Transformer Core Stacking Table Stepless Speed Regulating 1

Fig 2: Transformer core stacking table FZT-1T's hydraulic station



Adjustable Transformer Core Stacking Table Stepless Speed Regulating 2Adjustable Transformer Core Stacking Table Stepless Speed Regulating 3Adjustable Transformer Core Stacking Table Stepless Speed Regulating 4Adjustable Transformer Core Stacking Table Stepless Speed Regulating 5Adjustable Transformer Core Stacking Table Stepless Speed Regulating 6Adjustable Transformer Core Stacking Table Stepless Speed Regulating 7Adjustable Transformer Core Stacking Table Stepless Speed Regulating 8Adjustable Transformer Core Stacking Table Stepless Speed Regulating 9
