Hydraulic Tilting Mode Transformer Core Stacking Table With Capacity 3000kg

Hydraulic Tilting Mode Transformer Core Stacking Table With Capacity 3000kg

Hydraulic Tilting Mode Transformer Core Stacking Table With Capacity 3000kg
Hydraulic Tilting Mode Transformer Core Stacking Table With Capacity 3000kg

Large Image :  Hydraulic Tilting Mode Transformer Core Stacking Table With Capacity 3000kg Get Best Price

Product Details:
Place of Origin: China
Brand Name: STT
Model Number: FZT-3T
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Price: negotiable
Packaging Details: seaworthy packing
Delivery Time: 35 days
Payment Terms: T/T, L/C
Supply Ability: 100 sets per year
Detailed Product Description
Product Name: Transformer Core Stacking Table Usage: Stacking Silicon Steel Sheet
Platform Size: 1600x1400mm Platform Height: 1000mm
Max. Capacity: 3000kg Tilting Mode: Hydraulic
Color: As Requested Warranty: 12 Months
High Light:

Silicon Steel Sheet Stacking Table

,

3000kg Hydraulic Transformer Core Stacking Table

Hydraulic Tilting Mode Transformer Core Stacking Table With Capacity 3000kg





Description of transformer core stacking table FZT-3T



Transformer core stacking table is a specialized piece of equipment, which is mainly used in assembling transformer iron cores. The transformer core stacking table provides a flat surface with adjustable fixtures to securely stack the lamination, which forms the transformer core. The transformer core stacking table FZT-3T’s maximum capacity is 3000kg. The core stacking table plays a crucial role in producing high-quality transformers by facilitating accurate and efficient core assembly. The transformer core stacking table features easy operation.





Quick details of transformer core stacking table FZT-3T

  • The table size:1600x1400mm
  • Table height:1000mm
  • Motor power: 1.5kw
  • Color: optional



Main components of transformer core stacking table FZT-3T

  • Main frame
  • Hydraulic station
  • Linear guide
  • Hand held controller



Main parameters of transformer core stacking table FZT-3T



Typical standard specifications of transformer core stacking table FZT-3T are shown below, however, the core stacking table can also be manufactured as requested.



No. Item FZT-3T
1 Table Size(LxW): 1600×1400mm
2 Table Height: 1000mm
3 Max. Capacity: 3000Kg
4 Max. Stacking Thickness: 900mm
5 Tilting Mode: Hydraulic
6 Tilting Speed: 90°/Min(Stepless speed regulating)
7 Distance Between Columns: Adjustable
8 Main Power: 1.5KW
9 Warranty: 12 months



Hydraulic Tilting Mode Transformer Core Stacking Table With Capacity 3000kg 0

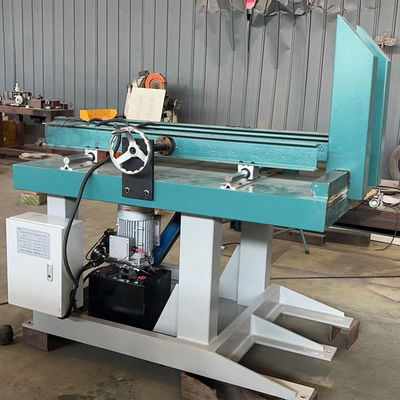

Fig 1: Transformer core stacking table FZT-3T's full view



Hydraulic Tilting Mode Transformer Core Stacking Table With Capacity 3000kg 1

Fig 2: Transformer core stacking table FZT-3T's hand wheel

Hydraulic Tilting Mode Transformer Core Stacking Table With Capacity 3000kg 2Hydraulic Tilting Mode Transformer Core Stacking Table With Capacity 3000kg 3Hydraulic Tilting Mode Transformer Core Stacking Table With Capacity 3000kg 4Hydraulic Tilting Mode Transformer Core Stacking Table With Capacity 3000kg 5Hydraulic Tilting Mode Transformer Core Stacking Table With Capacity 3000kg 6Hydraulic Tilting Mode Transformer Core Stacking Table With Capacity 3000kg 7Hydraulic Tilting Mode Transformer Core Stacking Table With Capacity 3000kg 8Hydraulic Tilting Mode Transformer Core Stacking Table With Capacity 3000kg 9
