Unicore Silicon Steel Cutting Machine Cutting Machine For Making Transformer Core

Unicore Silicon Steel Cutting Machine Cutting Machine For Making Transformer Core

Unicore Silicon Steel Cutting Machine Cutting Machine For Making Transformer Core
Unicore Silicon Steel Cutting Machine Cutting Machine For Making Transformer Core

Large Image :  Unicore Silicon Steel Cutting Machine Cutting Machine For Making Transformer Core Get Best Price

Product Details:
Place of Origin: China
Brand Name: STT
Model Number: UCM400
Payment & Shipping Terms:
Minimum Order Quantity: 1
Price: negotiable
Packaging Details: seaworthy packing
Delivery Time: 45 days
Payment Terms: T/T, L/C
Supply Ability: 100 sets per year
Detailed Product Description
Product Name: Unicore Cutting Machine Dereeler: Single Head
Color: Optional Warranty: 12 Months
Air Pressure: 1 Mpa Bending Angle: 45°
Dereeler Capacity: 1000kg Dereeler Expanding: Φ450mm ~ Φ510mm
High Light:

Single Head Unicore Cutting Machine

,

Silicon Steel Cutting Machine

,

Making Transformer Core Silicon Steel Cutter

Silicon Steel Cutting Machine Unicore Cutting Machine Making Transformer Core





Introduction of silicon steel cutting machine UCM400



Silicon steel cutting machine UCM400 is a professional cutting machine, which is mainly used to cut silicon steel strip. The cut strip can make C shaped cores and other similar products. This kind of cutting machine is also called unicore cutting machine. The cutting machine can cut silicon steel strips with maximum width 400mm. The cut strips can be used to make cores used in transformers and other similar products. The unicore cutting machine adopts advanced cutting technology, precision measurement, and user-friendly controls, which gurantees to provide efficient and accurate cutting of laminations for transformer cores. The cutting machine features high automation, easy operation and so on.





Main parts of silicon steel cutting machine UCM400



1. Main machine

2. Single head foil dereeler

3. Floor support plate

4. One set of cutter





Main parameters of silicon steel cutting machine UCM400



Typical standard specifications of silicon steel cutting machine UCM400 are shown below, however, the cutting machine can also be manufactured as requested.

Silicon steel sheet width (single) Maximum 400mm
Silicon steel sheet width (double) Maximum 190mm
Cutting speed adjustable
Bending angle of silicon steel sheet 45°
Foil dereeler Hydraulic expanding
Foil dereeler expanding range Φ450mm ~ Φ510mm
Foil dereeler capacity 1000kg
Silicon steel roll inner diameter Φ500mm
Silicon steel roll outer diameter Φ1000mm maximum
Power Supply 380V 50Hz
Power 6kw
Machine dimension(LxWxH): 7000×1800×1500mm



Unicore Silicon Steel Cutting Machine Cutting Machine For Making Transformer Core 0

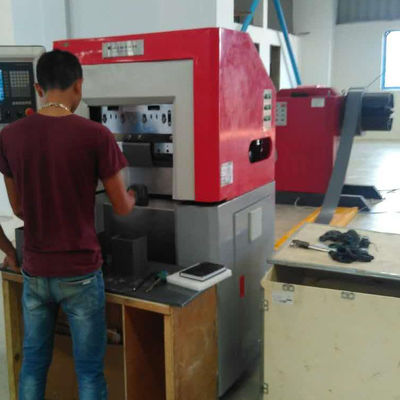

Fig 1: Silicon steel cutting machine UCM400's full view



Unicore Silicon Steel Cutting Machine Cutting Machine For Making Transformer Core 1

Fig 2: Silicon steel cutting machine UCM400's cut product



Unicore Silicon Steel Cutting Machine Cutting Machine For Making Transformer Core 2

Unicore Silicon Steel Cutting Machine Cutting Machine For Making Transformer Core 3

Unicore Silicon Steel Cutting Machine Cutting Machine For Making Transformer Core 4

Unicore Silicon Steel Cutting Machine Cutting Machine For Making Transformer Core 5

Unicore Silicon Steel Cutting Machine Cutting Machine For Making Transformer Core 6

Unicore Silicon Steel Cutting Machine Cutting Machine For Making Transformer Core 7

Unicore Silicon Steel Cutting Machine Cutting Machine For Making Transformer Core 8
