Stacking And Tilting Table Transformer Core Stacking Table 1000mm Table Height

Stacking And Tilting Table Transformer Core Stacking Table 1000mm Table Height

Stacking And Tilting Table Transformer Core Stacking Table 1000mm Table Height
Stacking And Tilting Table Transformer Core Stacking Table 1000mm Table Height

Large Image :  Stacking And Tilting Table Transformer Core Stacking Table 1000mm Table Height Get Best Price

Product Details:
Place of Origin: China
Brand Name: STT
Model Number: FZT-1T
Payment & Shipping Terms:
Minimum Order Quantity: 1
Price: negotiable
Packaging Details: seaworthy packing
Delivery Time: 30 days
Payment Terms: T/T, L/C
Supply Ability: 100 sets per year
Detailed Product Description
Product Name: Transformer Core Stacking Table Table Height: 1000mm
Power: 1.5kw Stacking Height: 400mm
Color: As Requested Warranty Period: 12 Months
Max. Capacity: 1000kg Tilting: Hydraulic Driven
High Light:

Transformer Core Stacking Table 1000mm

,

Transformer Core Stacking And Tilting Table

,

Hydraulic Driven Tilting Transformer Core Machine

Stacking And Tilting Table Transformer Core Stacking Table





Description of transformer core stacking table FZT-1T



Transformer core stacking table FZT-1T is a professional equipment to stack silicon steel strip, which is for making transformer cores or other similar products. The transformer core stacking table is with a tilting function and can tilt stacked core up to 90° for taking the stacked core away from the table easily. The transformer core stacking table is provided with a linear guide and a hydraulic system for tilting stacked cores. The transformer core stacking table features smooth tilting and easy to operate, which assures the quality of laminating iron cores and improves the production efficiency.





Quick details of transformer core stacking table FZT-1T

  • Maximum capacity 1000kgs
  • Main power 1.5kw
  • Table height 1000m
  • One year warranty



Main components of transformer core stacking table FZT-1T



1. Main frame

2. Hydraulic station

3. Linear guide





Main parameters of transformer core stacking table FZT-1T



Typical standard specifications of transformer core stacking table FZT-1T are shown below, however the machine can also be manufactured as requested.

Platform Size: 1300×1000mm
Max Load Capacity: 1000Kg
Stacked Accuracy: 0.1 ~ 0.2mm
Table Height: 1000mm
Driven Mode: Hydraulic
Main Power: 1.5KW
Max. Iron Core Thickness: 400mm
Tilting Speed: 90°/Min(Stepless speed regulating)
Distance Between Columns: Adjustable



Stacking And Tilting Table Transformer Core Stacking Table 1000mm Table Height 0

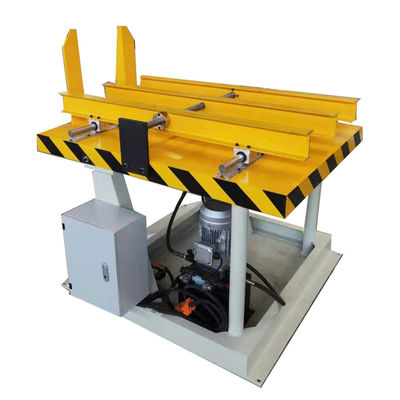

Fig 1: Transformer core stacking table FZT-1T's full view



Stacking And Tilting Table Transformer Core Stacking Table 1000mm Table Height 1

Fig 2: Transformer core stacking table FZT-1T's hydraulic station



Stacking And Tilting Table Transformer Core Stacking Table 1000mm Table Height 2Stacking And Tilting Table Transformer Core Stacking Table 1000mm Table Height 3Stacking And Tilting Table Transformer Core Stacking Table 1000mm Table Height 4Stacking And Tilting Table Transformer Core Stacking Table 1000mm Table Height 5Stacking And Tilting Table Transformer Core Stacking Table 1000mm Table Height 6Stacking And Tilting Table Transformer Core Stacking Table 1000mm Table Height 7Stacking And Tilting Table Transformer Core Stacking Table 1000mm Table Height 8Stacking And Tilting Table Transformer Core Stacking Table 1000mm Table Height 9
