Unicore Silicon Steel Cutting Machine Automatic Duocore Machine

Unicore Silicon Steel Cutting Machine Automatic Duocore Machine

Unicore Silicon Steel Cutting Machine Automatic Duocore Machine
Unicore Silicon Steel Cutting Machine Automatic Duocore Machine

Large Image :  Unicore Silicon Steel Cutting Machine Automatic Duocore Machine Get Best Price

Product Details:
Place of Origin: China
Brand Name: STT
Model Number: UCM400
Payment & Shipping Terms:
Minimum Order Quantity: 1
Price: negotiable
Packaging Details: seaworthy packing
Delivery Time: 45 days
Payment Terms: T/T, L/C
Supply Ability: 100 sets per year
Detailed Product Description
Name: Unicore Cutting Machine Decoiler: Single Head
Machine Color: Optional Warranty Period: 12 Months
Air Pressure: 1 Mpa Bending Angle: 45°
Decoiler Capacity: 1000kg Decoiler Expanding: Φ450mm ~ Φ510mm
High Light:

450mm Silicon Steel Cutting Machine

,

Duocore Silicon Steel Cutting Machine

Automatic Duocore Machine Unicore Cutting Machine


Description of unicore cutting machine UCM400

Unicore cutting machine UCM400 is a professional cutter for cutting silicon steel to make C shaped core for transformer. This kind of cut core can be used to make transformers and other similar products. The cutting speed of the unicore cutting machine can be adjusted to meet different needs. The unicore cutting machine features high automation, easy operation and so on.


Quick details of unicore cutting machine UCM400

  • Suitable for making oil, dry, traction transformer
  • One head decoiler
  • Single set silicon steel sheet width ≤400mm
  • Double sets sillicon steel sheet with ≤190mm
  • Air pressure 1 Mpa
  • One year warranty


Main components of unicore cutting machine UCM400

  • Cylinder
  • Bearings
  • Linear guide,
  • Linear bearing etc.
  • Decoiler
  • Touch screen


Main parameters of unicore cutting machine UCM400

Typical standard specifications of unicore cutting machine UCM400 are shown below, however the machine can also be manufactured as requested.

Silicon steel sheet width (single) Maximum 400mm
Silicon steel sheet width (double) Maximum 190mm
Cutting speed adjustable
Bending angle of silicon steel sheet 45°
Foil dereeler Hydraulic expanding
Foil dereeler expanding range Φ450mm ~ Φ510mm
Foil dereeler capacity 1000kg
Silicon steel roll inner diameter Φ500mm
Silicon steel roll outer diameter Φ1000mm maximum
Power Supply 380V 50Hz
Power 6kw
Machine dimension(LxWxH): 7000×1800×1500mm


Unicore Silicon Steel Cutting Machine Automatic Duocore Machine 0

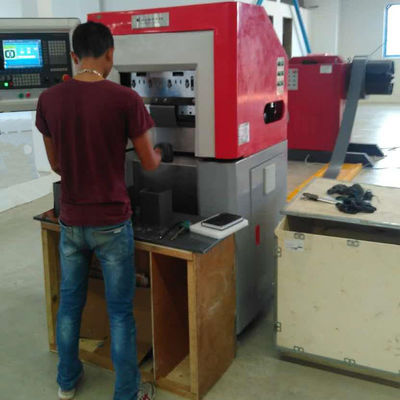

Fig 1: Silicon steel cutting machine UCM400's full view

Unicore Silicon Steel Cutting Machine Automatic Duocore Machine 1
Fig 2: Silicon steel cutting machine UCM400's cut product

Unicore Silicon Steel Cutting Machine Automatic Duocore Machine 2
Unicore Silicon Steel Cutting Machine Automatic Duocore Machine 3
Unicore Silicon Steel Cutting Machine Automatic Duocore Machine 4
Unicore Silicon Steel Cutting Machine Automatic Duocore Machine 5
Unicore Silicon Steel Cutting Machine Automatic Duocore Machine 6
Unicore Silicon Steel Cutting Machine Automatic Duocore Machine 7
Unicore Silicon Steel Cutting Machine Automatic Duocore Machine 8
