Automatic Making Silicon Steel Strip Coil Slitter Core Slitting Machine

Automatic Making Silicon Steel Strip Coil Slitter Core Slitting Machine

Automatic Making Silicon Steel Strip Coil Slitter Core Slitting Machine
Automatic Making Silicon Steel Strip Coil Slitter Core Slitting Machine

Large Image :  Automatic Making Silicon Steel Strip Coil Slitter Core Slitting Machine Get Best Price

Product Details:
Place of Origin: China
Brand Name: STT
Model Number: ZJX1250
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Price: negotiable
Packaging Details: seaworthy packing
Delivery Time: 90 days
Payment Terms: T/T, L/C
Supply Ability: 100 sets per year
Detailed Product Description
Product Name: Core Slitting Machine Function: Slit Silicon Steel Sheet
Max. Roll Outer Diameter: Ø1200mm Roll Inner Diameter: Ø500mm
Sheet Thickness: 0.15 ~ 0.6mm Sheet Width: 500 ~ 1250mm
Machine Color: As Requested Warranty: 12 Months
Slitting Accuracy: ±0.1mm Material: Silicon Steel Sheet
High Light:

Silicon Steel Strip Coil Slitter

,

Strip Coil Core Slitting Machine

,

Automatic Core Slitting Machine

Automatic Making Silicon Steel Strip Coil Slitter Core Slitting Machine


Quick details of core slitting machine ZJX1250


  • Decoiler expanding range Ø470 ~ 520mm
  • Cutting width 500 ~ 1250 mm
  • Cutting thickness 0.15 ~ 0.6mm
  • Cutter 6 sets
  • Feeding speed 120m/min
  • Power 46kw
  • One year warranty


Description of core slitting machine ZJX1250

Core slitting machine ZJX1250 is a professional slitter, which is mainly used to slit silicon steel coil to make different width silicon steel strip. The slit strip can be cut to different length and shape to make transformer core or other similar products. The slitting speed of the core slitting machine can be adjusted. The core cutting machine’s system is based on PLC. The slitter features high automation and easy operation etc.




Main components of core slitting machine ZJX1250

1. Trolley for loading and unloading material
2. Decoiler
3. Material receiver
4. Movable guide device
5. Slitting device
6. Tensioner
7. Winder
8. Hydraulic station and pneumatic system
9. Electrical control cabinet and console


Main parameters of core slitting machine ZJX1250

Typical standard specifications of core slitting machine ZJX1250 are shown below, however, the slitting machine can also be manufactured as requested.

Decoiler expanding range:Ø470 - 520mm
Coil ID:Ø495 - 510mm
Maximum coil OD:Ø1200mm
Maximum coil weight:5000kg
Cutting width:500 - 1250 mm
Cutting thickness:0.15 - 0.6 mm
Cutting width tolerance:±0.10mm
Cutter:6 sets
Feeding speed:120 m/min
Cutting burring:≤0.02 mm
Power:46 kw


Automatic Making Silicon Steel Strip Coil Slitter Core Slitting Machine 0

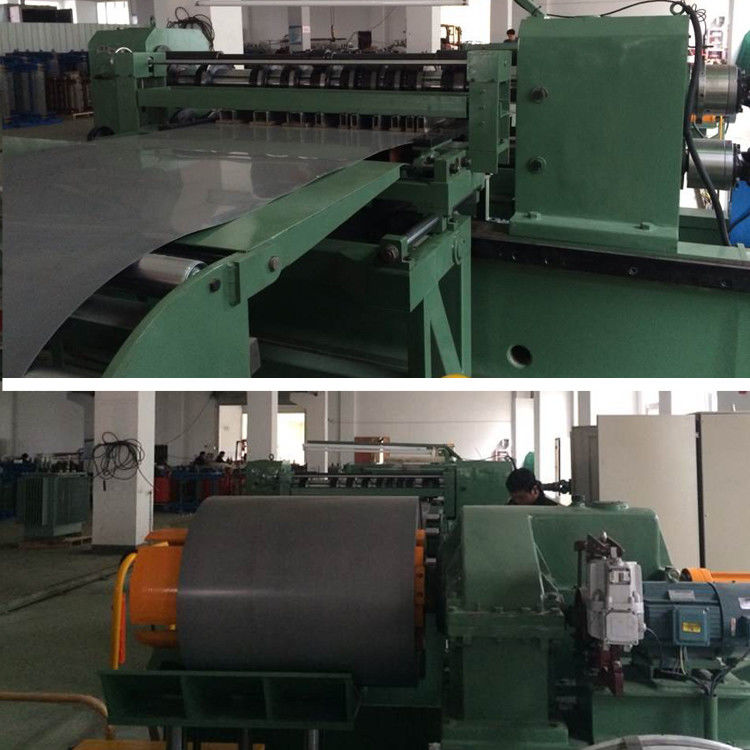

Fig 1: Core slitting machine ZJX1250's front view

Automatic Making Silicon Steel Strip Coil Slitter Core Slitting Machine 1
Fig 2: Core slitting machine ZJX1250's winder

Automatic Making Silicon Steel Strip Coil Slitter Core Slitting Machine 2

Automatic Making Silicon Steel Strip Coil Slitter Core Slitting Machine 3
Automatic Making Silicon Steel Strip Coil Slitter Core Slitting Machine 4

Automatic Making Silicon Steel Strip Coil Slitter Core Slitting Machine 5

Automatic Making Silicon Steel Strip Coil Slitter Core Slitting Machine 6
Automatic Making Silicon Steel Strip Coil Slitter Core Slitting Machine 7
Automatic Making Silicon Steel Strip Coil Slitter Core Slitting Machine 8
Automatic Making Silicon Steel Strip Coil Slitter Core Slitting Machine 9
Automatic Making Silicon Steel Strip Coil Slitter Core Slitting Machine 10
