Adjustable Hydraulic Driven Tilting Platform Transformer Core Stacking Table

Adjustable Hydraulic Driven Tilting Platform Transformer Core Stacking Table

Adjustable Hydraulic Driven Tilting Platform Transformer Core Stacking Table
Adjustable Hydraulic Driven Tilting Platform Transformer Core Stacking Table

Large Image :  Adjustable Hydraulic Driven Tilting Platform Transformer Core Stacking Table Get Best Price

Product Details:
Place of Origin: China
Brand Name: STT
Model Number: FZT-3T
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Price: negotiable
Packaging Details: seaworthy packing
Delivery Time: 35 days
Payment Terms: T/T, L/C
Supply Ability: 100 sets per year
Detailed Product Description
Name: Transformer Core Stacking Table Function: Stacking Silicon Steel Sheet
Platform Size: 1600x1400mm Platform Height: 1000mm
Max. Capacity: 3000kg Tilting Mode: Hydraulic
Color: As Requested Warranty: 12 Months
High Light:

Tilting Platform Transformer Core Stacking Table

,

Hydraulic Driven Transformer Core Stacking Table

,

Adjustable Transformer Core Stacking Table

Adjustable Hydraulic Driven Tilting Platform Transformer Core Stacking Table





Description of transformer core stacking table FZT-3T



Transformer core stacking table FZT-3T is a professional equipment for assembling transformer iron cores. The transformer core stacking table provides a hydraulic station to provide a force to tilt the stacked core. The transformer core stacking table FZT-3T’s maximum capacity is 3000kg. With a hand held controller, the transformer core stacking table features easy operation.





Quick details of transformer core stacking table FZT-3T



  • Table size:1600x1400mm
  • Table height:1000mm
  • Motor power: 2.2kw
  • Color: optional



Main components of transformer core stacking table FZT-3T



  • Main frame
  • Hydraulic station
  • Linear guide
  • Hand held controller



Main parameters of transformer core stacking table FZT-3T



Typical standard specifications of transformer core stacking table FZT-3T are shown below, however, the core stacking table can also be manufactured as requested.



No. Item FZT-3T
1 Table Size(LxW): 1600×1400mm
2 Table Height: 1000mm
3 Max. Capacity: 3000Kg
4 Max. Stacking Thickness: 900mm
5 Tilting Mode: Hydraulic
6 Tilting Speed: 90°/Min(Stepless speed regulating)
7 Distance Between Columns: Adjustable
8 Main Power: 2.2KW
9 Warranty: 12 months



Adjustable Hydraulic Driven Tilting Platform Transformer Core Stacking Table 0

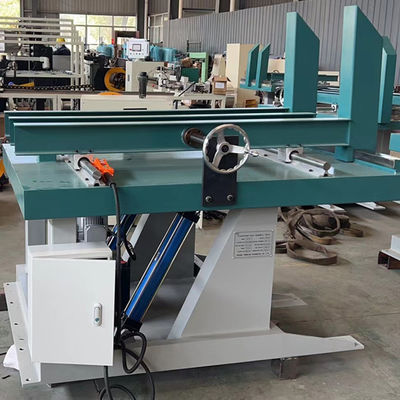

Fig 1: Transformer core stacking table FZT-3T's full view



Adjustable Hydraulic Driven Tilting Platform Transformer Core Stacking Table 1

Fig 2: Transformer core stacking table FZT-3T's hand wheel

Adjustable Hydraulic Driven Tilting Platform Transformer Core Stacking Table 2Adjustable Hydraulic Driven Tilting Platform Transformer Core Stacking Table 3Adjustable Hydraulic Driven Tilting Platform Transformer Core Stacking Table 4Adjustable Hydraulic Driven Tilting Platform Transformer Core Stacking Table 5Adjustable Hydraulic Driven Tilting Platform Transformer Core Stacking Table 6Adjustable Hydraulic Driven Tilting Platform Transformer Core Stacking Table 7Adjustable Hydraulic Driven Tilting Platform Transformer Core Stacking Table 8Adjustable Hydraulic Driven Tilting Platform Transformer Core Stacking Table 9
