Silicon Steel Sheet Slitting Line Core Slitting Machine

Silicon Steel Sheet Slitting Line Core Slitting Machine

Silicon Steel Sheet Slitting Line Core Slitting Machine
Silicon Steel Sheet Slitting Line Core Slitting Machine

Large Image :  Silicon Steel Sheet Slitting Line Core Slitting Machine Get Best Price

Product Details:
Place of Origin: China
Brand Name: STT
Model Number: ZJX1250
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Price: negotiable
Packaging Details: seaworthy packing
Delivery Time: 90 days
Payment Terms: T/T, L/C
Supply Ability: 100 sets per year
Detailed Product Description
Name: Slitting Line Usage: Slit Silicon Steel Sheet
Max. Roll Outer Diameter: Ø1200mm Roll Inner Diameter: Ø500mm
Sheet Thickness: 0.15 ~ 0.6mm Sheet Width: 500 ~ 1250mm
Machine Color: As Requested Warranty: 12 Months
Slitting Accuracy: ±0.1mm Material: Silicon Steel Sheet
High Light:

Silicon Steel Sheet Slitting Line

,

Silicon Steel Sheet Core Slitting Machine

,

Core Slitting Machine

Silicon Steel Sheet Slitting Line Core Slitting Machine





Quick details of core slitting machine ZJX1250:

  • Decoiler expanding range Ø470 ~ 520mm
  • Cutting width 500 ~ 1250 mm
  • Cutting thickness 0.15 ~ 0.6mm
  • Cutter 6 sets
  • Feeding speed 120m/min
  • Power 46kw
  • One year warranty



Description of core slitting machine ZJX1250



Core slitting machine ZJX1250 is a special equipment for slitting silicon steel sheet to make different widths of strips. The slit strip can be cut to different length and shapes to make transformers’ core legs and yokes or other similar products. The slitting speed of the core slitting machine can be adjusted. With PLC control system, the slitting machine can be operated very easily.





Main components of core slitting machine ZJX1250



1. Trolley for loading and unloading material

2. Decoiler

3. Material receiver

4. Movable guide device

5. Slitting device

6. Tensioner

7. Winder

8. Hydraulic station and pneumatic system

9. Electrical control cabinet and console





Main parameters of core slitting machine ZJX1250



Typical standard specifications of core slitting machine ZJX1250 are shown below and the slitting machine can also be manufactured as requested.

Decoiler expanding range: Ø470 - 520mm
Coil ID: Ø495 - 510mm
Maximum coil OD: Ø1200mm
Maximum coil weight: 5000kg
Cutting width: 500 - 1250 mm
Cutting thickness: 0.15 - 0.6 mm
Cutting width tolerance: ±0.10mm
Cutter: 6 sets
Feeding speed: 120 m/min
Cutting burring: ≤0.02 mm
Power: 46 kw


Silicon Steel Sheet Slitting Line Core Slitting Machine 0

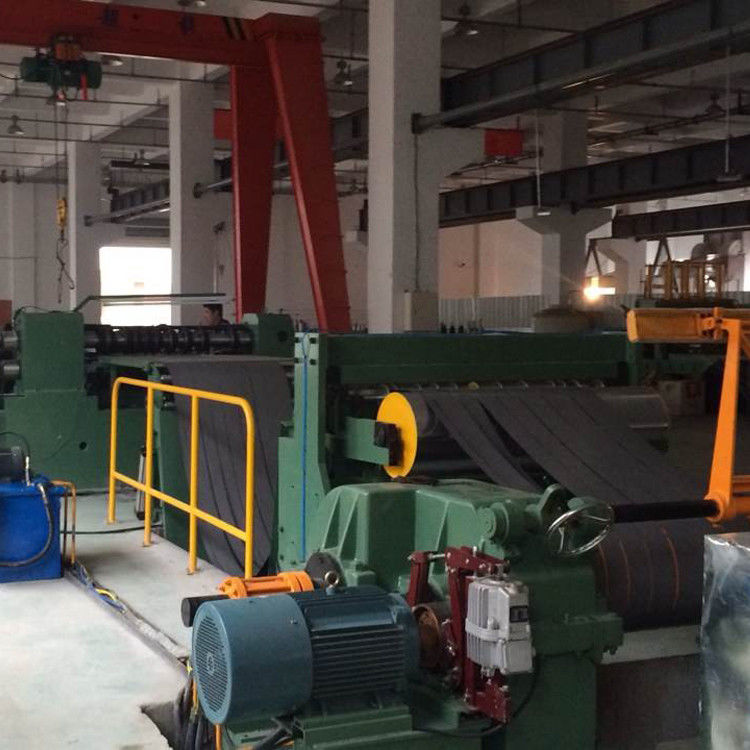

Fig 1: Core slitting machine ZJX1250's front view

Silicon Steel Sheet Slitting Line Core Slitting Machine 1
Fig 2: Core slitting machine ZJX1250's winder

Silicon Steel Sheet Slitting Line Core Slitting Machine 2

Silicon Steel Sheet Slitting Line Core Slitting Machine 3
Silicon Steel Sheet Slitting Line Core Slitting Machine 4

Silicon Steel Sheet Slitting Line Core Slitting Machine 5

Silicon Steel Sheet Slitting Line Core Slitting Machine 6
Silicon Steel Sheet Slitting Line Core Slitting Machine 7
Silicon Steel Sheet Slitting Line Core Slitting Machine 8
Silicon Steel Sheet Slitting Line Core Slitting Machine 9
Silicon Steel Sheet Slitting Line Core Slitting Machine 10
