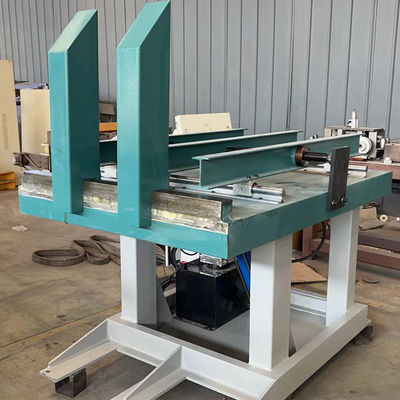

Tilting Platform Transformer Iron Core Stacking Table 1.5kw

Tilting Platform Transformer Iron Core Stacking Table 1.5kw

Tilting Platform Transformer Iron Core Stacking Table 1.5kw
Tilting Platform Transformer Iron Core Stacking Table 1.5kw

Large Image :  Tilting Platform Transformer Iron Core Stacking Table 1.5kw Get Best Price

Product Details:
Place of Origin: China
Brand Name: STT
Model Number: FZT-1T
Payment & Shipping Terms:
Minimum Order Quantity: 1
Price: negotiable
Packaging Details: seaworthy packing
Delivery Time: 30 days
Payment Terms: T/T, L/C
Supply Ability: 100 sets per year
Detailed Product Description
Name: Transformer Core Stacking Table Table Height: 1000mm
Power: 1.5kw Stacking Height: 400mm
Color: As Requested Warranty Period: 12 Months
Capacity: 1000kg, Maximum Tilting: Hydraulic
High Light:

Tilting Platform Transformer Core Stacking Table

,

Iron Core Transformer Core Stacking Table

,

1.5kw Transformer Core Stacking Table

Tilting Platform Transformer Iron Core Stacking Table





Description of transformer core stacking table FZT-1T



Transformer core stacking table FZT-1T is a special equipment, which can be used to stack silicon steel strips to make transformer cores or other similar products. The transformer core stacking table is with a tilting function and can tilt stacked core up to 90°, which makes the stacked core be taken away from the table easily. One hydraulic station provides force for the stacking table to drive the table tilt. With a hand held controller, the transformer core stacking table can be operated very easily.





Main components of transformer core stacking table FZT-1T



1. Main frame

2. Hydraulic station

3. Linear guide





Main parameters of transformer core stacking table FZT-1T



Typical standard specifications of transformer core stacking table FZT-1T are shown below, however the machine can also be manufactured as requested.

Platform Size: 1300×1000mm
Max Load Capacity: 1000Kg
Stacked Accuracy: 0.1 ~ 0.2mm
Table Height: 1000mm
Driven Mode: Hydraulic
Main Power: 1.5KW
Max. Iron Core Thickness: 400mm
Tilting Speed: 90°/Min(Stepless speed regulating)
Distance Between Columns: Adjustable



Tilting Platform Transformer Iron Core Stacking Table 1.5kw 0

Fig 1: Transformer core stacking table FZT-1T's full view



Tilting Platform Transformer Iron Core Stacking Table 1.5kw 1

Fig 2: Transformer core stacking table FZT-1T's hydraulic station



Tilting Platform Transformer Iron Core Stacking Table 1.5kw 2Tilting Platform Transformer Iron Core Stacking Table 1.5kw 3Tilting Platform Transformer Iron Core Stacking Table 1.5kw 4Tilting Platform Transformer Iron Core Stacking Table 1.5kw 5Tilting Platform Transformer Iron Core Stacking Table 1.5kw 6Tilting Platform Transformer Iron Core Stacking Table 1.5kw 7Tilting Platform Transformer Iron Core Stacking Table 1.5kw 8Tilting Platform Transformer Iron Core Stacking Table 1.5kw 9
