Description of core slitting machine ZJX1250

Core slitting machine ZJX1250 is a special cutting equipment. The core slitting machine is mainly used to slit silicon steel sheet to make strips. Through setting different parameters, the core slitting machine can be used to slit different widths of strips. The maximum width of the slit silicon steel can be 1200mm. The slit strips can be used to make transformer core’s legs, yokes and other similar products. The core slitting machine is provided with 6 sets of cutters, that is to say, the core slitting machine can slit five pieces of strips at one time. The cutters can be added to slit more strips at one time if needing. With PLC control and HMI, the slitting machine can be operated easily.


Quick Details of core slitting machine ZJX1250:

• Decoiler expanding range Ø470 ~ 520mm
• Cutting width 500 ~ 1250 mm
• Cutting thickness 0.15 ~ 0.6mm
• Cutter 6 sets
• Feeding speed 120m/min
• Power 46kw
• One year warranty


Main components of core slitting machine ZJX1250

1. Trolley for loading and unloading material
2. Decoiler
3. Material receiver
4. Movable guide device
5. Slitting device
6. Tensioner
7. Winder
8. Hydraulic station and pneumatic system
9. Electrical control cabinet and console

Main parameters of core slitting machine ZJX1250


Typical standard specifications of core slitting machine ZJX1250 are shown below and the slitting machine can also be manufactured as requested.

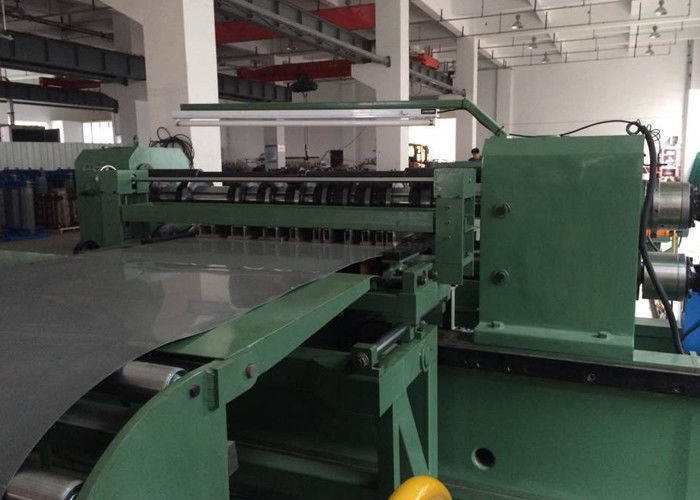

Fig 1: Core slitting machine ZJX1250's front view


Fig 2: Core slitting machine ZJX1250's winder
