Customizable Automatic Silicon Steel Core Slitting Machine For Sheet Width 500 1250mm

Automatic Silicon Steel Core Slitting Machine Máquina de corte longitudinal

Description of core slitting machine ZJX1250

Core slitting machine ZJX1250 is a special cutter equipment, which is mainly used to slit silicon steel sheet to make silicon steel strip with different width. These strips can be cut to make transformer core’s legs and yokes. The core slitting machine’s control system is based on PLC. With HMI, the core slitting machine can be operated easily. The number of the cutter of the core slitting machine can be provided as requested.

Quick details of core slitting machine ZJX1250

• Decoiler expanding range Ø470 ~ 520mm
• Cutting width 500 ~ 1250 mm
• Cutting thickness 0.15 ~ 0.6mm
• Feeding speed 120m/min
• Power 46kw
• One year warranty

Main components of core slitting machine ZJX1250

1. Trolley for loading and unloading material

2. Decoiler

3. Material receiver

4. Movable guide device

5. Slitting device

6. Tensioner

7. Winder

8. Hydraulic station and pneumatic system

9. Electrical control cabinet and console

Main parameters of core slitting machine ZJX1250

Typical standard specifications of core slitting machine ZJX1250 are shown below and the slitting machine can also be manufactured as requested.

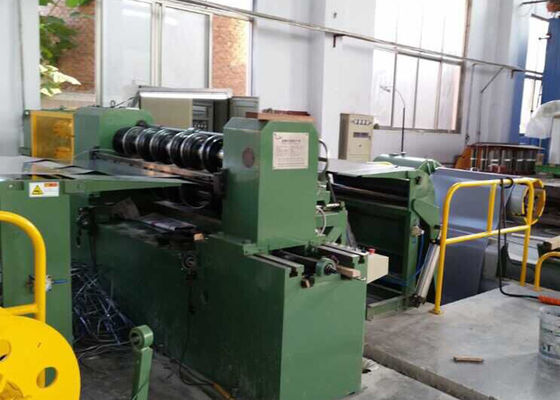

Fig 1: Core slitting machine ZJX1250's front view


Fig 2: Core slitting machine ZJX1250's winder
