Hydraulic Driven Tilting Function Transformer Iron Core Stacking Table

Hydraulic Driven Tilting Function Transformer Iron Core Stacking Table

Description of transformer core stacking table FZT-1T

Transformer core stacking table FZT-1T is a professional stacking table for stacking transformer iron core. The transformer core stacking table is provided with a hydraulic station, which provides power for tilting the stacked core after finishing stacking the core. The transformer core stacking table’s maximum capacity is 1000kg. With a hand held controller, it is very easy to operate the transformer iron core stacking table.

Main Components of transformer core stacking table FZT-1T

1.  Main frame

2.  Hydraulic station

3.  Linear guide

Main Parameters of transformer core stacking table FZT-1T

Typical standard specifications of transformer core stacking table FZT-1T are shown below and the core stacking table can be also be manufactured as requested.

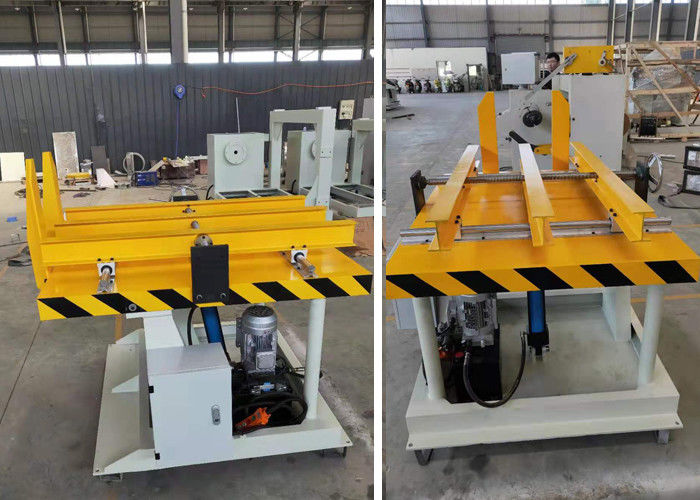

Fig 1: Transformer core stacking table FZT-1T's full view

Fig 2: Transformer core stacking table FZT-1T's hydraulic station
