Description of core slitting machine ZJX1250

Core slitting machine ZJX1250 is a special slitter equipment for slitting silicon steel sheet, which can make different widths of silicon steel strips. Transformer core’s legs and yokes and other similar products can be made with this kind of slit strips. The core slitting machine’s control system is based on PLC. With PLC and HMI, the core slitting machine can be operated very easily.

Quick details of core slitting machine ZJX1250

• Decoiler expanding range Ø470 ~ 520mm
• Cutting width 500 ~ 1250 mm
• Cutting thickness 0.15 ~ 0.6mm
• Feeding speed 120m/min
• Power 46kw
• One year warranty

Main components of core slitting machine ZJX1250

1. Trolley for loading and unloading material

2. Decoiler

3. Material receiver

4. Movable guide device

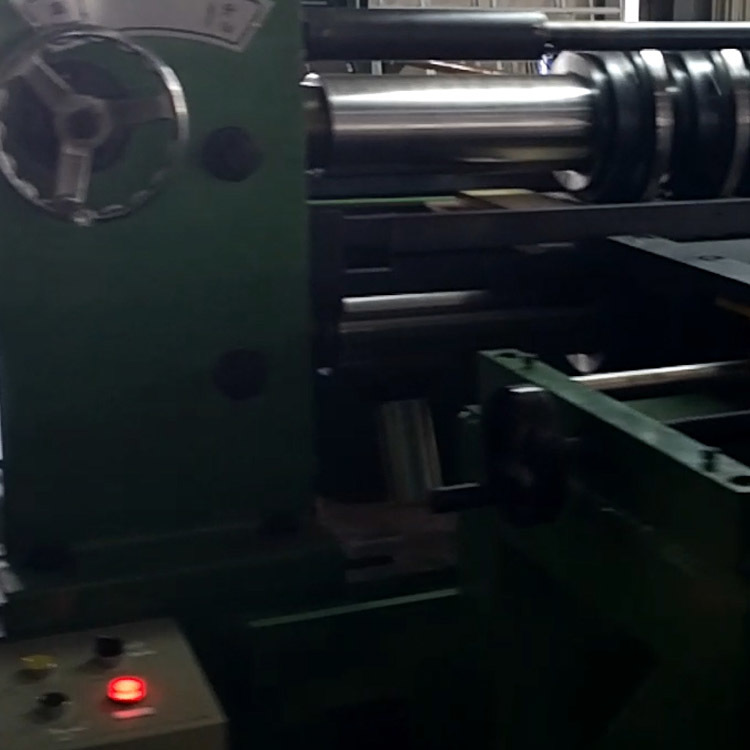

5. Slitting device

6. Tensioner

7. Winder

8. Hydraulic station and pneumatic system

9. Electrical control cabinet and console

Main parameters of core slitting machine ZJX1250

Typical standard specifications of core slitting machine ZJX1250 are shown below and the slitting machine can also be manufactured as requested.

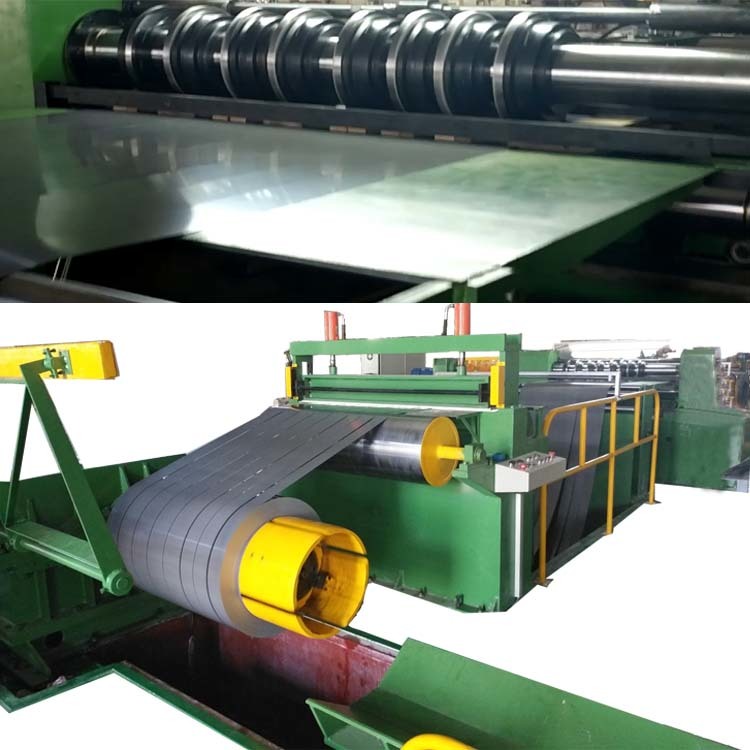

Fig 1: Core slitting machine ZJX1250's front view

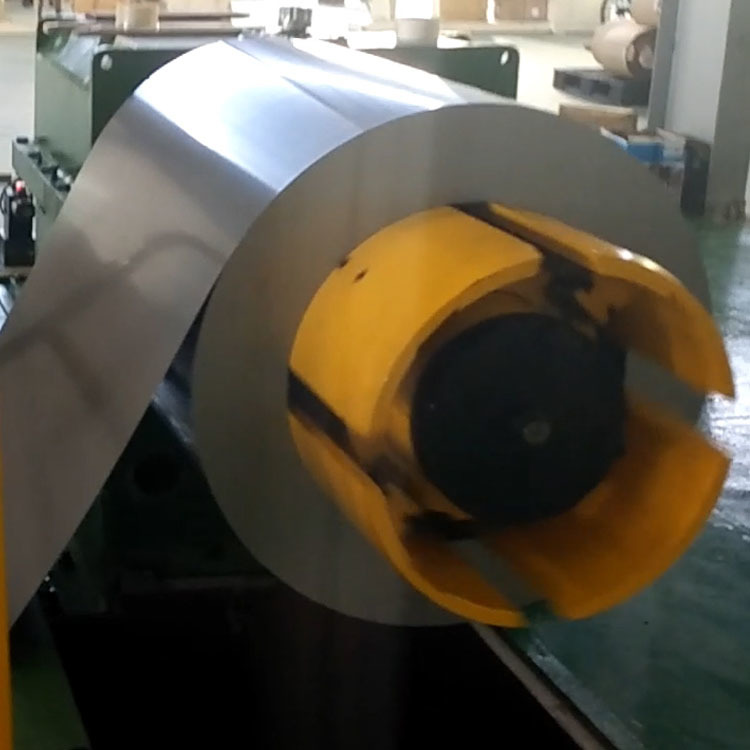

Fig 2: Core slitting machine ZJX1250's winder
