Hydraulic Driven Transformer Core Stacking Table with Hand Held Controller and Stepless Speed Regulating for 1500x1200mm Table Size

Transformer Core Assembly Tilting Table Core Stacking Table

Description of transformer core stacking table FZT-3T

Transformer core stacking table FZT-3T is one kind of professional transformer core assembly equipment for stacking transformer iron core, then tilting the stacked core for taking it away from the table easily. The transformer core stacking table is provided with two beams, and the distance between the beams can be adjusted for being suitable for different sizes of cores. A hydraulic station for the core stacking table provides big force to tilt the stacked core up to 90°. With a hand held controller, The transformer core stacking table can be operated easily.

Quick details of transformer core stacking table FZT-3T

l The table size:1500×1200mm

l Table height:1000mm

l Power: 2.2kw

l Color: optional

Main components of transformer core stacking table FZT-3T

l Main frame

l Hydraulic station

l Linear guide

l Control panel

Main Parameters of transformer core stacking table FZT-3T

Typical standard specifications of transformer core stacking table FZT-3T are shown below and the transformer core stacking table can also be manufactured as requested.

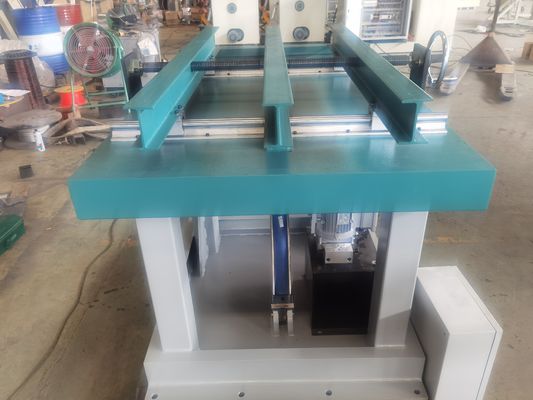

Fig 1: Transformer core stacking table FZT-3T's full view

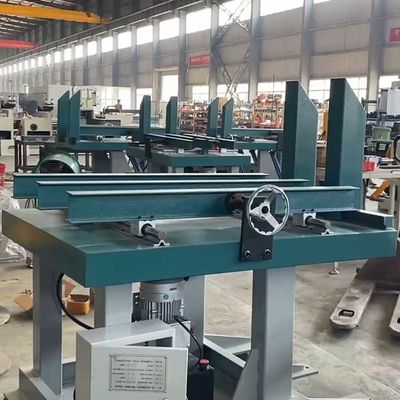

Fig 2: Transformer core stacking table FZT-3T's hand wheel
