Description of transformer core stacking table FZT-1T

Transformer core stacking table FZT-1T is a special stacking table for stacking silicon steel strip, which serves transformer core. With a hydraulic station, the transformer core stacking table can tilt the stacked core up to 90 degrees. The transformer core stacking table’s maximum loading capacity is 1000kg. With a hand held controller, it is very easy to operate the transformer iron core stacking table.

Main Components of transformer core stacking table FZT-1T

1.  Main frame

2.  Hydraulic station

3.  Linear guide

Main Parameters of transformer core stacking table FZT-1T

Typical standard specifications of transformer core stacking table FZT-1T are shown below and the core stacking table can be also be manufactured as requested.

Fig 1: Transformer core stacking table FZT-1T's full view

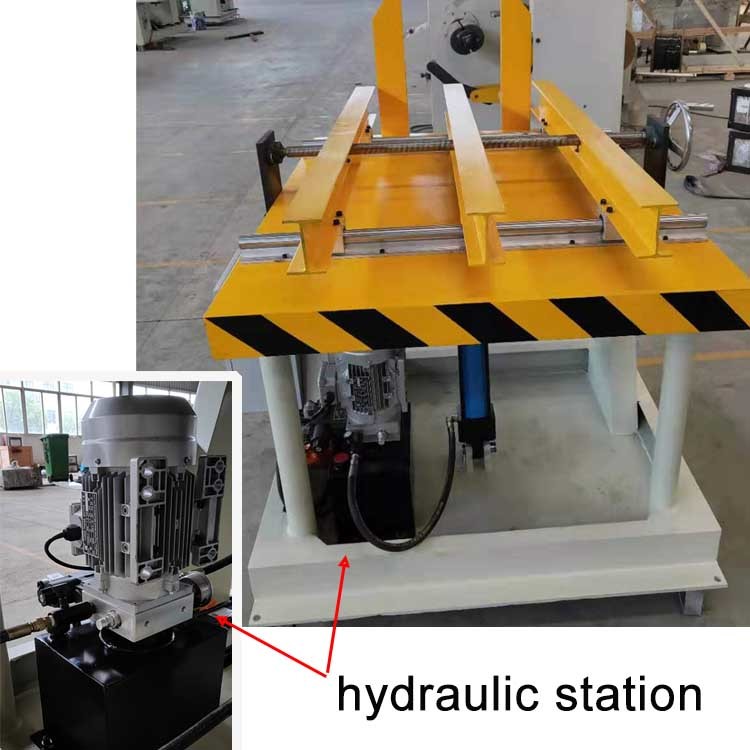

Fig 2: Transformer core stacking table FZT-1T's hydraulic station
