Name: Transformer Core Stacking Table

Usage: Stacking Silicon Steel Sheet

Table Size: 1500x1200mm

Working Height: 900mm

Maximum Loading Capacity: 3000kg

Tilting: Hydraulic Driven

Machine Color: As Requested

Warranty Period: 12 Months

Highlight:

Hydraulic transformer core stacking table

Transformer core tilting table FZT-3T

Core stacking table with hydraulic system

Basic Infomation

Place of Origin: China

Brand Name: STT

Certification: CE

Model Number: FZT-3T

Payment & Shipping Terms

Packaging Details: seaworthy packing

Delivery Time: 35 days

Payment Terms: T/T,L/C

Supply Ability: 100 sets per year

Gallery

Hydraulic Transformer Core Stacking Table with 3000kg Load Capacity and Adjustable Column Design

Product Description

Hydraulic Transformer Core Stacking & Tilting Table (FZT-3T)

Name: Hydraulic Transformer Core Stacking Table with 3000kg Load Capacity and Adjustable Column Design
Brand: Suzhou Tronsing Technology Co., Ltd
SKU: FZT-3T
Price: 26,000.00 USD
Availability: InStock

Product Overview

The FZT-3T Automatic Hydraulic Stacking Table is a premium workshop solution specifically engineered for assembling and handling transformer iron cores.

With a robust 3,000 kg (3 Tons) load capacity, this platform allows operators to stack core laminations horizontally with ease. Once stacking is complete, the integrated hydraulic system smoothly tilts the entire assembly up to 90°, allowing overhead cranes or lifting equipment to safely and effortlessly remove the finished core. This equipment significantly reduces labor intensity, protects core geometry, and enhances assembly efficiency.

Key Features & Advantages

Smooth Hydraulic Tilting: Powered by a heavy-duty hydraulic station, the table transitions seamlessly from 0° to 90° without jerking, ensuring the integrity of the stacked core.
Stepless Speed Regulation: Features an adjustable tilting speed (up to 90°/min), allowing operators to precisely control the turnover process based on the weight and size of the core.
Flexible Column Design: The distance between supporting columns is fully adjustable, enabling the table to accommodate various transformer core dimensions.
Safe & User-Friendly: Designed with an intuitive control panel and high-precision linear guides for ultra-stable, reliable, and safe daily operation.

System Configuration & Main Components

The FZT-3T core assembly line comprises 4 high-quality modules:

Heavy-Duty Main Frame: Rigid welded steel structure designed to eliminate deflection under maximum loads.
Premium Hydraulic Station: Delivers stable, leak-free power for the 90-degree tilting mechanism.
High-Precision Linear Guide: Ensures smooth, parallel movement during setup and operation.
Centralized Control Panel: Simple, ergonomic interface for safe and effortless operation.

Technical Specifications

Note: The parameters listed below represent the standard FZT-3T configuration. We offer fully customizable table sizes, weight capacities, and paint colors to align with your specific plant requirements.

Parameter Item	Technical Specification (FZT-3T)
Max. Loading Capacity	3,000 kg (3 Tons)
Table Dimension (L x W)	1600 × 1400 mm
Table Working Height	1000 mm
Max. Stacking Thickness	900 mm
Tilting Mechanism	Hydraulic Driven
Tilting Speed	90°/min (Stepless Speed Regulation)
Column Distance	Adjustable
Main Motor Power	1.5 kW
Equipment Color	Optional / Customized to your factory standard
Warranty Period	12 Months

Hydraulic Transformer Core Stacking Table with 3000kg Load Capacity and Adjustable Column Design 0

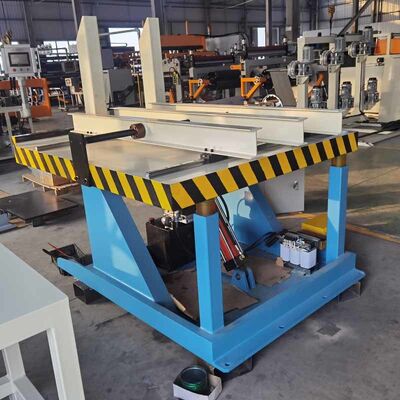

Fig 1: Transformer core stacking table FZT-3T's full view

Hydraulic Transformer Core Stacking Table with 3000kg Load Capacity and Adjustable Column Design 1

Fig 2: Transformer core stacking table FZT-3T's hand held controller

Hydraulic Transformer Core Stacking Table with 3000kg Load Capacity and Adjustable Column Design 2
