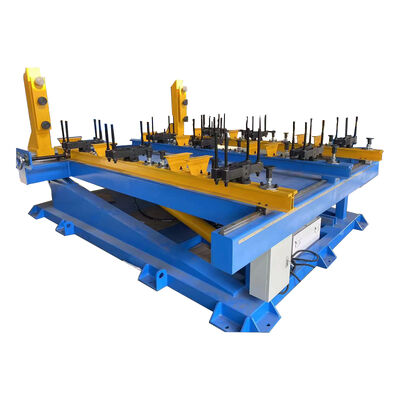

10-Ton Heavy Duty Transformer Core Stacking Table | Hydraulic Core Assembly Table (FZT-10T)

Product Overview

The Heavy Duty Transformer Core Stacking and Tilting Table FZT-10T is an essential industrial solution designed for the precise stacking, assembly, and 90-degree tilting of large and medium-sized transformer iron cores. Engineered to handle a massive 10,000 kg (10 Tons) maximum capacity, this robust core assembly table streamlines the manufacturing process of heavy-duty power transformers. Powered by a high-performance hydraulic station, the core stacking table FZT-10T features a progressive soft-starting mechanism, stepless speed regulation, and ultra-smooth tilting operations. It provides operators with a safe, efficient, and highly accurate platform to build core lamination stacks without risking structural distortion.

Core Features & Manufacturing Advantages

• Upgraded 10-Ton Capacity: Heavy-duty reinforced structural main frame rated securely to assemble and tilt iron cores up to 10,000 kg.

• Hydraulic 90° Tilting System: Delivers a smooth, controlled 90°/min tilting speed with stepless speed regulation to eliminate jerky movements during heavy lifting.

• Adjustable Column Distance: Flexible, sliding columns allow the assembly line to accommodate various transformer core geometries and dimensions easily.

• Premium Linear Guide Rails: High-precision linear guides guarantee parallel alignment and absolute accuracy during the stacking process.

• Ergonomic & Safe Design: Designed at an optimized working height of 900 mm with an centralized electrical control panel for maximum operator safety and convenience.

Technical Specifications

Premium Construction Components

To ensure 24/7 reliability on the factory floor, the core stacking table FZT-10T is integrated with high-grade components:

• Industrial Hydraulic Station & Cylinders: Provides consistent pressure and precise holding strength during the entire 90-degree tilting cycle.

• Reinforced Steel Main Frame: Engineered with structural steel to prevent any deflection or flexing under maximum 10-ton loads.

• Precision Guide Rails: Simplifies alignment tasks, helping manufacturers reduce core loss by ensuring perfect lamination symmetry.

Looking for Custom Dimensions or Higher Capacities?

We specialize in manufacturing custom transformer core stacking tables tailored to your specific factory layouts and core designs.

Contact our engineering team today to receive a technical drawing and a direct factory quote!
