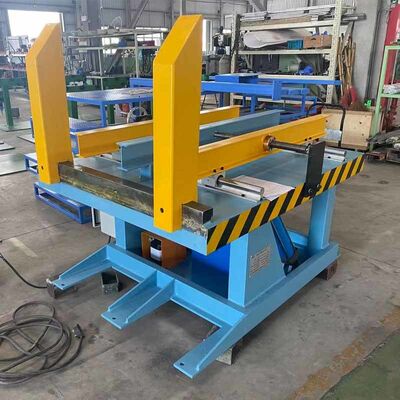

FZT-3T Automatic Hydraulic Transformer Core Stacking Table 90° Tilting Worktable
Product Overview
The FZT-3T hydraulic tilting core stacking table is a specialized auxiliary workstation engineered exclusively for transformer core assembly and stacking processes. In traditional transformer production, stacked iron cores are heavy and cumbersome to move, easily causing labor waste, core displacement and surface damage during handling. Equipped with a reliable hydraulic drive system, this transformer core stacking worktable supports stable 90-degree tilting operation after core stacking is completed. It features stepless adjustable tilting speed, smooth and jitter-free operation, and extremely simple workflow. Workers can effortlessly lift, position and remove fully stacked transformer cores, greatly improving assembly efficiency, reducing manual handling intensity and protecting finished core products from collision damage. It is an essential supporting device for standardized transformer manufacturing lines.
Core Product Features & Industrial Advantages
-
Stable Hydraulic Tilting System Adopting professional hydraulic drive configuration, the equipment delivers consistent and powerful tilting power. The stepless speed regulation function allows operators to flexibly adjust the tilting speed according to core weight and stacking thickness, ensuring the entire tilting process is slow, uniform and stable without shaking or core slipping.
-
90° Vertical Tilting Design for Easy Unloading After finishing lamination stacking, the worktable can accurately tilt the stacked transformer core to 90° vertical state. It completely avoids the difficulty of manual flipping and heavy lifting, realizing fast and safe core taking and transferring, and optimizing the overall production rhythm.
-
Heavy-Duty Load-Bearing & High Adaptability With a maximum load capacity of 3000KG and a maximum stacking thickness of 900mm, this stacking table adapts to the stacking work of most medium and small transformer cores. The adjustable column distance further improves equipment compatibility to meet diverse production specifications.
-
User-Friendly & Low Failure Operation Integrated with intuitive control panel and high-precision linear guide structure, the equipment runs smoothly with low friction and stable positioning. The whole operation process is simplified, requiring no complex professional skills. It effectively reduces operational errors and equipment maintenance costs.
-
Customizable Appearance & Industrial Durability The main frame adopts thickened industrial steel structure with strong rigidity and long service life. Machine color can be customized according to factory production line style, realizing unified workshop equipment appearance and standardized production management.
Full Technical Parameters
Below shows the standard technical specifications of FZT-3T transformer core stacking table. We support personalized non-standard modification and customized upgrading to match your exclusive production demands.
|
Technical Item
|
Standard Specification
|
|
Machine Model
|
FZT-3T Hydraulic Transformer Core Stacking Table
|
|
Table Dimension (L×W)
|
1600 × 1400mm
|
|
Standard Table Height
|
1000mm
|
|
Max Load-Bearing Capacity
|
3000KG
|
|
Max Allowable Stacking Thickness
|
900mm
|
|
Tilting Driving Mode
|
Full Hydraulic Automatic Drive
|
|
Tilting Speed
|
90°/Min (Stepless Speed Regulation)
|
|
Column Spacing
|
Adjustable Design
|
|
Matching Power
|
1.5KW
|
|
Machine Color
|
Custom Optional
|
|
Warranty Period
|
12 Months
|
|
Custom Service
|
Support Non-Standard Customization
|
Machine Main Components
The FZT-3T tilting stacking table adopts modular integrated configuration, with high-quality matching parts to ensure long-term stable industrial operation:
-
Heavy-Duty Main Frame: Thick steel welded structure, high rigidity, anti-deformation, ensuring stable load-bearing performance.
-
Professional Hydraulic Station: Provides stable power support for tilting action, with low noise and durable operation.
-
Precision Linear Guide: Ensures accurate positioning and smooth sliding during equipment operation.
-
Intuitive Control Panel: Simplified button operation, convenient parameter control and running status monitoring.
Application Scenarios
This hydraulic tilting stacking workstation is specially designed for transformer manufacturing production lines. It is widely applied in lamination stacking, core assembly, finished core turnover and transfer operations for power transformers, distribution transformers and electrical equipment transformers. It is a necessary auxiliary device to improve production efficiency and product qualification rate for transformer processing enterprises.
FAQ
Q1: Is the hydraulic tilting process stable for heavy cores? A: Yes. Equipped with a matched hydraulic power unit and reinforced load-bearing structure, the machine maintains stable tilting without jitter or offset even under full 3-ton load, protecting stacked silicon steel cores from damage.
Q2: Can I adjust the tilting speed according to production needs? A: Absolutely. It supports stepless speed regulation, allowing operators to freely control the tilting rate to adapt to different core sizes and stacking thicknesses for flexible production.
Q3: Does the equipment support personalized customization? A: We provide comprehensive customization services, including table size adjustment, color customization, functional upgrading and structural optimization to meet your unique production line requirements.
Get Factory Quotation
If you are looking for a labor-saving, stable and high-efficiency automatic hydraulic transformer core stacking table to upgrade your transformer production line, the FZT-3T model is your ideal solution. We offer factory direct sales, professional technical support and reliable after-sales service. Contact us now to get the latest customized quotation!
